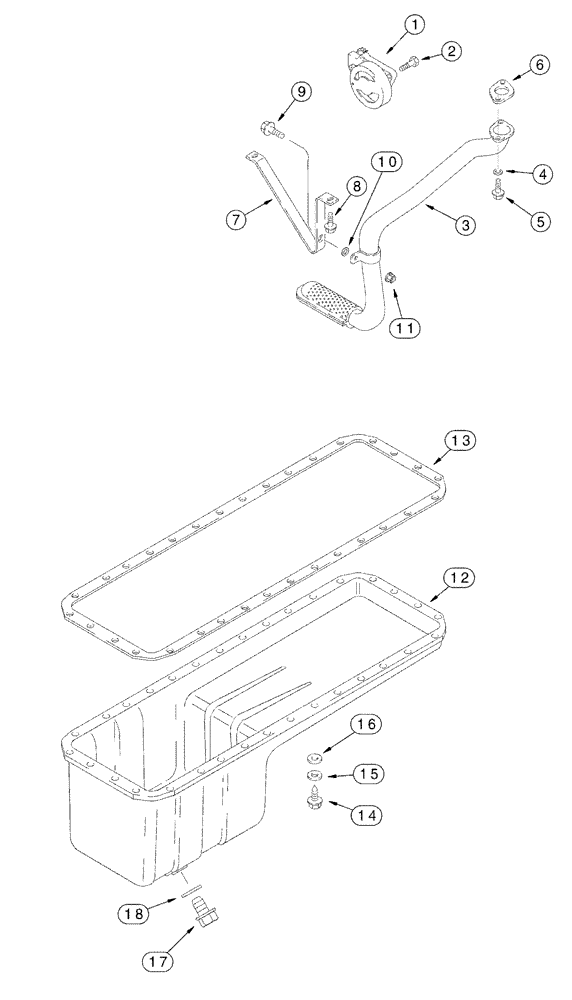

Запчасти Case IH FLX3330B (02-012) - OIL PUMP & OIL PAN (FLX3300B CASE ENGINE) (01) - ENGINE

1

J942723

PUMP, ENGINE OIL

Assembly, New

1шт.

1

JR942723

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Assembly, Remanufactured

1шт.

1

JC942723

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number

1шт.

2

J900677

BOLT,Hex

M8 X 30

4шт.

3

J910787

TUBE

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

Mounting

1шт.

7

J927611

BRACKET

Brace

1шт.

8

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

2шт.

9

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

10

J910960

WASHER

1шт.

11

J906216

FLANGE NUT

Flange, M6

1шт.

12

J933347

ENGINE OIL PAN

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Order : A77679

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

32шт.

15

J910266

LOCK WASHER

Spring

32шт.

16

J908316

WASHER

M9 X 16 X 1

32шт.

17

J924147

PLUG,M18 x 1.5

Hex, M18

1шт.

18

J920773

SEALING WASHER

1шт.

A77679

GASKET KIT

Oil Pan

1шт.

Consists of Refs. 6, 13, 18, J902425

1шт.
