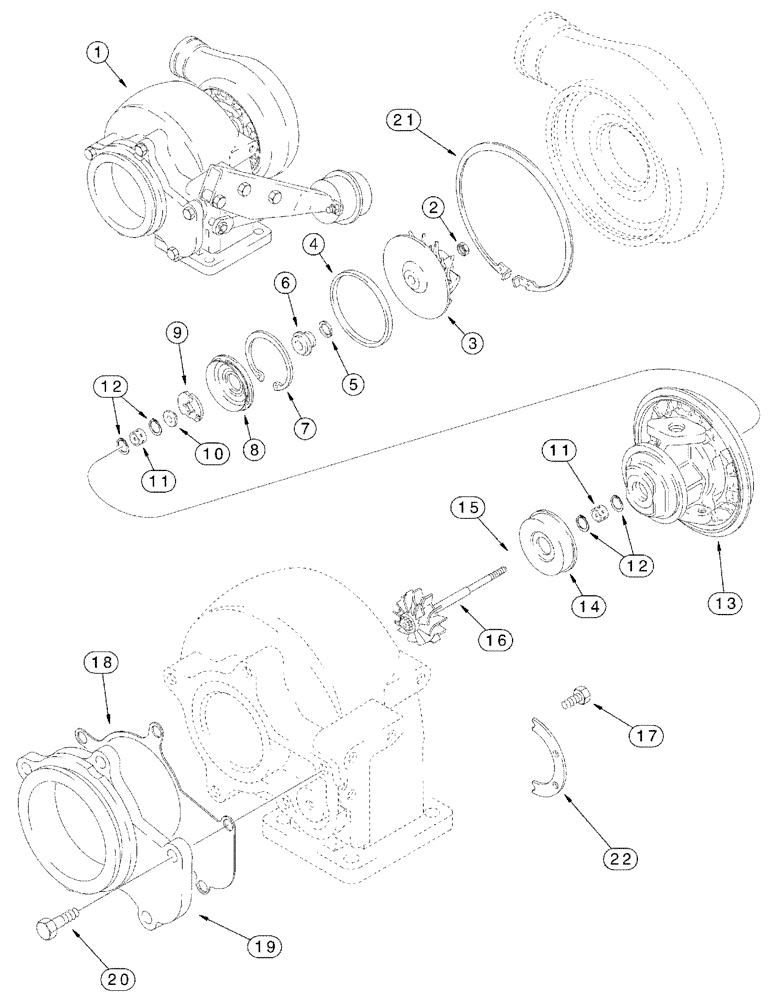

Запчасти Case IH FLX3330B (02-009) - TURBOCHARGER ASSEMBLY (FLX3300B CASE ENGINE) (01) - ENGINE

J800426

SERVICE KIT

Turbocharger

1шт.

Not Shown

1шт.

Includes J590348, J519807, J901356, 237-6005

1шт.

JR800426

REMAN-TURBOCHARGER

FLX3300B

1шт.

JC590348

CORE-TURBOCHARGER

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

Turbocharger

1шт.

Consists of Refs. 2 - 22, Also Includes Refs. 1 - 15 on Fig. 02-008

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J537960

GASKET,0.46mm Thk

Housing

1шт.

19

J537979

ADAPTER

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

Kit, Overhaul

2шт.

Consists of Refs. 2, 4, 5,7,8,9, 11, 12, 15, 17

1шт.

J575169

REPAIR KIT

Overhaul

1шт.

Consists of Refs. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
