Запчасти Case IH FLX3330B (02-005) - WATER PUMP SYSTEM (FLX3300B CASE ENGINE) (01) - ENGINE

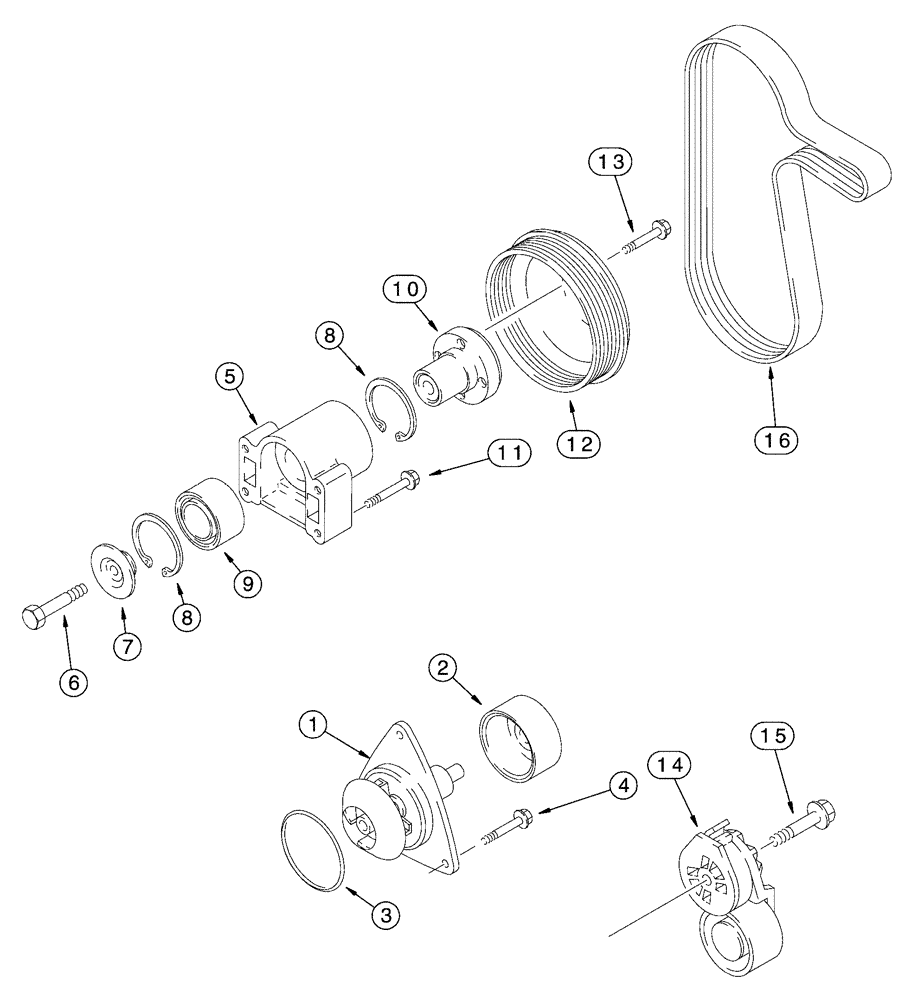

Схема запчастей Case IH FLX3330B - (02-005) - WATER PUMP SYSTEM (FLX3300B CASE ENGINE) (01) - ENGINE
1
9
11
5
7
8
12
10
16
2
15
14
6
13
8
4
3

Артикул

Название

Примечание

Количество

J804927

WATER PUMP

Kit

1шт.

Consists of Refs. 1 - 3

1шт.

87308650R

REMAN-WATER PUMP

FLX3300B, FLX3330B Both (12/99-9/02) Reman for New P/N J804927

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

J934054

FLANGE BOLT

Flange, M8 X 28

3шт.

5

J942896

SUPPORT

Assembly, Replaces : J942895

1шт.

Includes Refs. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, M10 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

4шт.

12

J926855

PULLEY,187.23mm OD

1шт.

13

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

14

J945527

TENSIONER

1шт.

15

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.

16

J944840

V-BELT,27.92 mm W x 1988.60 mm L, 8 Ribs

1шт.

Выбрано товаров: 21
