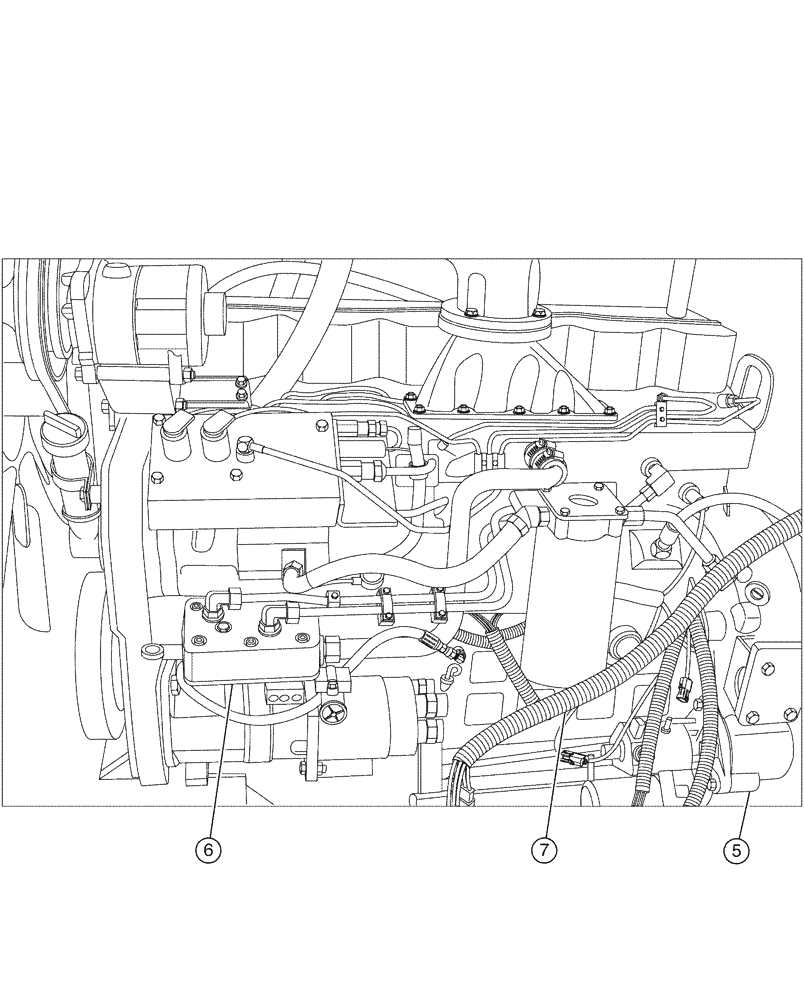

Запчасти Case IH FLX3330B (02-003[02]) - ENGINE GROUP (FLX3300B CASE ENGINE) (01) - ENGINE

1

BN2290298

BUSHING

0102-12-6

2шт.

2

BN2292249

HYDRAULIC VALVE

Heater Everhot

2шт.

3

BN2394965

TEMPERATURE SENDER

1шт.

4

NSS

NOT SOLD SEPARAT

Alternator Group, 300 CDC

1шт.

See Fig. 02-064

1шт.

5

NSS

NOT SOLD SEPARAT

Starter Group, 300 CDC

1шт.

See Fig. 02-063

1шт.

6

BN318784

Air Compressor Group

1шт.

NSS

NOT SOLD SEPARAT

Coolant Lines, Air Compressor

1шт.

Parts Of Air Compressor Group, P/N BN318784

1шт.

See Fig. 02-037

1шт.

NSS

NOT SOLD SEPARAT

Air Intake Tube, Air Compressor

1шт.

Parts Of Air Compressor Group, P/N BN318784

1шт.

See Fig. 02-038

1шт.

NSS

NOT SOLD SEPARAT

Air Compressor Assembly

1шт.

Parts Of Air Compressor Group, P/N BN318784

1шт.

See Fig. 02-036

1шт.

7

BN318816

SENDER UNIT

Oil Pressure

1шт.

Parts Of Air Compressor Group, P/N BN318784

1шт.

8

BN319006

Turbo Elbow Group

1шт.

J008465

PLUG

1/8 NPT, Int Hex, Seal

2шт.

Parts Of Turbo Elbow Group, P/N BN319006

1шт.

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

Parts Of Turbo Elbow Group, P/N BN319006

1шт.

J883977

ELBOW

Turbo X 4, 90 Degree

1шт.

Parts Of Turbo Elbow Group, P/N BN319006

1шт.

J923041

SLOTTED NUT

1шт.

Parts Of Turbo Elbow Group, P/N BN319006

1шт.

J923060

CLAMP,76.2mm

1шт.

Parts Of Turbo Elbow Group, P/N BN319006

1шт.

9

BN319293

O-RING

M22 Hex HD

1шт.

See Fig. 02-018

1шт.

10

381813A1

Case 8.3L, 300HP

1шт.

11

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.
