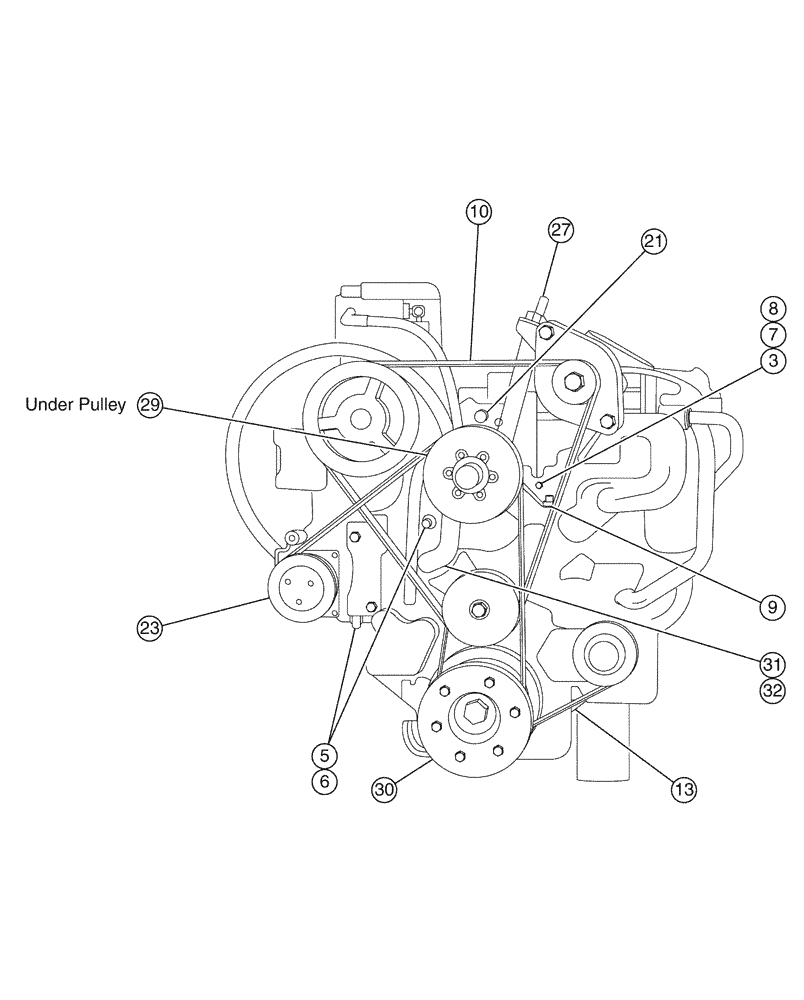

Запчасти Case IH FLX3330B (02-001[02]) - ENGINE GROUP (FLX3300B CAT 3208JWAC) (01) - ENGINE

1

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

2шт.

2

BN2290173

FITTING

2103-4-6

1шт.

3

BN2290278

BUSHING

0102-6-2

1шт.

4

BN2290291

BUSHING

0102-4-2

1шт.

5

BN2290298

BUSHING

0102-12-6

2шт.

6

BN2292249

HYDRAULIC VALVE

Heater Everhot

2шт.

7

BN2293521

FITTING

2102-6-6

1шт.

8

BN2293687

FITTING

744240

1шт.

9

BN2394965

TEMPERATURE SENDER

1шт.

10

BN2396287

V-BELT

Alternator, Air Compressor

2шт.

11

BN312105

FAN

1шт.

BN2396838

HEATER

Water (3208) 120V

1шт.

Not Shown

1шт.

12

BN2399638

FITTING

4MP-4FP

1шт.

13

BN2400295

BELT

2шт.

14

BN2401945

SENDER UNIT

Tach 71255

1шт.

15

BN2404997

PRESSURE SWITCH

N.O.

1шт.

16

BN300175

WASHER

3/8", G8

6шт.

17

BN303492

SPACER

330, Cat

1шт.

18

NSS

NOT SOLD SEPARAT

Assembly, Throttle

1шт.

See Fig. 02-033

1шт.

19

BN305705

ENGINE

Cat 3208 300 JWAC

1шт.

20

BN311366

SENDER UNIT

Oil, Servere HD

1шт.

21

NSS

NOT SOLD SEPARAT

Fan Modifications

1шт.

See Fig. 02-035

1шт.

22

NSS

NOT SOLD SEPARAT

Group, Compresssor, Pneumatic, 3208

1шт.

See Fig. 07-003

1шт.

23

NSS

NOT SOLD SEPARAT

Group, Compresser A/C

1шт.

See Fig. 02-061

1шт.

24

BN50274

BOLT

3/8-16 X 2.75 (Cat)

6шт.

25

BN72028

ELBOW

1/8 x 90º street

1шт.

26

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

27

BN2292194-008

Pulley Adjuster ALT.

1шт.

28

BN2292194-010

PIPE CLAMP

Turbo 3208 9N2039

1шт.

29

BN51674

HOSE CLAMP

Adjustable #40

1шт.

30

BN319214

PULLEY

2A6.63, Cat

1шт.

31

BN319223

PLATE

Orifice

1шт.

32

BN319222

GASKET

Water Fill 3208

1шт.
