Запчасти Case IH FLX3330B (05-001[02]) - REAR TIRE GROUP - 66" FIRESTONE, 16 PLY, ASSY,WHEEL/TIRE RR-CS Tires

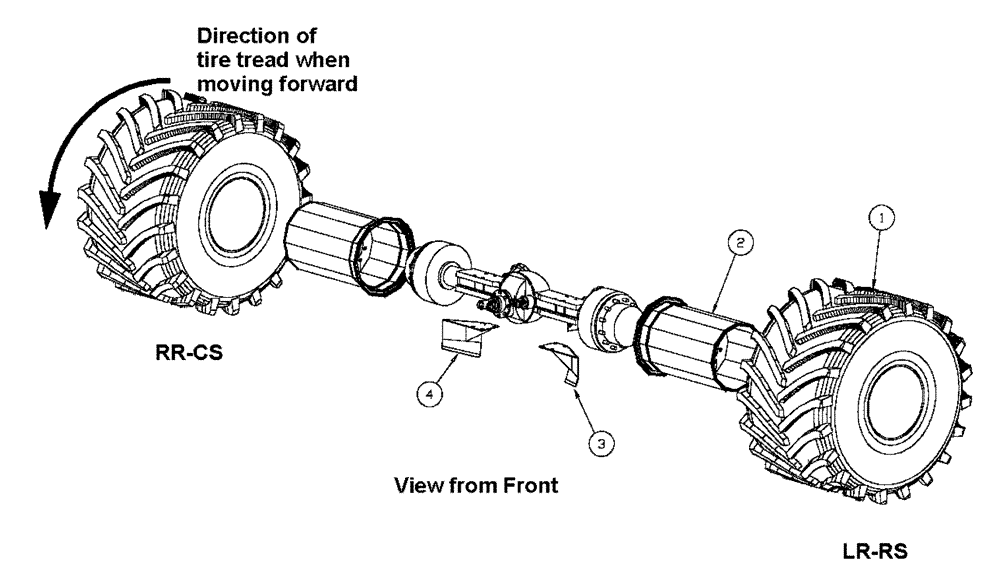

Схема запчастей Case IH FLX3330B - (05-001[02]) - REAR TIRE GROUP - 66" FIRESTONE, 16 PLY, ASSY,WHEEL/TIRE RR-CS Tires
3
2
1
4

Артикул

Название

Примечание

Количество

1

304490

TYRE/TIRE

66 X 43-25 16P FS

1шт.

Contact Your Local Tire Dealer For Tire Warranty And Replacement Tires

1шт.

2

BN311818

WHEEL ASSY

Rear

1шт.

BN2391858

O-RING

OR25T Black

1шт.

Service Parts For Ref. 2

1шт.

BN67197

VALVE STEM

TR-600

1шт.

Service Parts For Ref. 2

1шт.

BN2297235

LOCKING RING

LR25T

1шт.

Associated Part Of Throttle Pedal - Engine Dependent, P/N 310217

1шт.

BN2396615

FLANGE

FL025T

1шт.

Associated Part Of Throttle Pedal - Engine Dependent, P/N 310217

1шт.

3

BN7136021

MUD CLEANER

Left Rear

1шт.

4

BN7136022

MUD CLEANER

Right Rear

1шт.

Выбрано товаров: 13
