(07-018) - HAND THROTTLE VALVE GROUP (FLX3300B CAT ENGINE & FLX3330B)

Запчасти Case IH FLX3330B (07-018) - HAND THROTTLE VALVE GROUP (FLX3300B CAT ENGINE & FLX3330B) Pneumatics

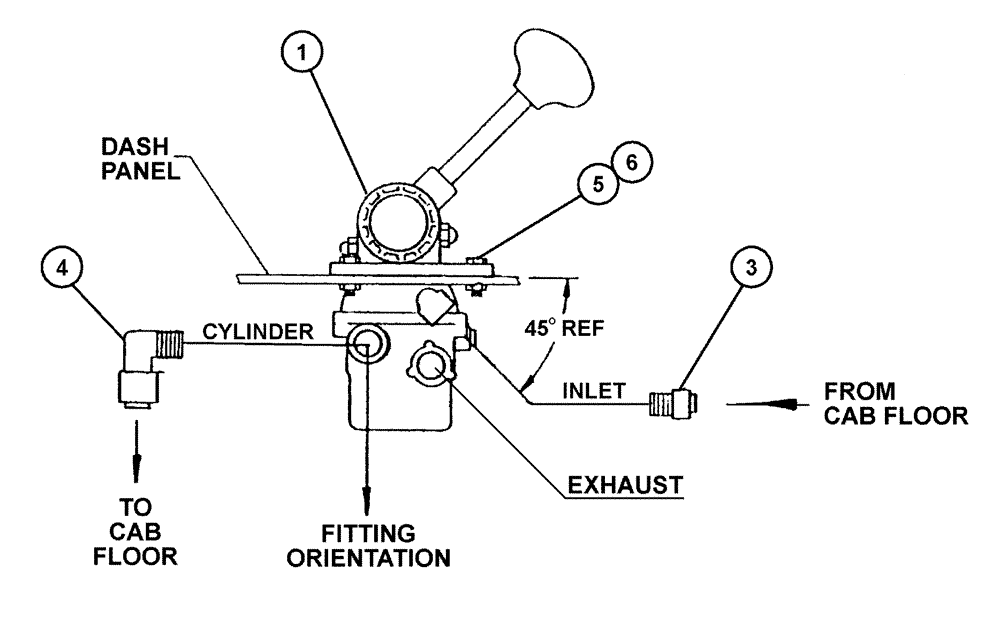

Схема запчастей Case IH FLX3330B - (07-018) - HAND THROTTLE VALVE GROUP (FLX3300B CAT ENGINE & FLX3330B) Pneumatics
4
5
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2298296

HYDRAULIC VALVE

WM786-B1

1шт.

3

BN2399401

ADAPTER

Male, 1/4" Tube

1шт.

4

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

5

BN1913307C

HH 1/4-20 X 3/4 NC

4шт.

6

BN1470402C

FLANGE NUT

NC 1/4-20 Flex Lock

4шт.

Выбрано товаров: 5
