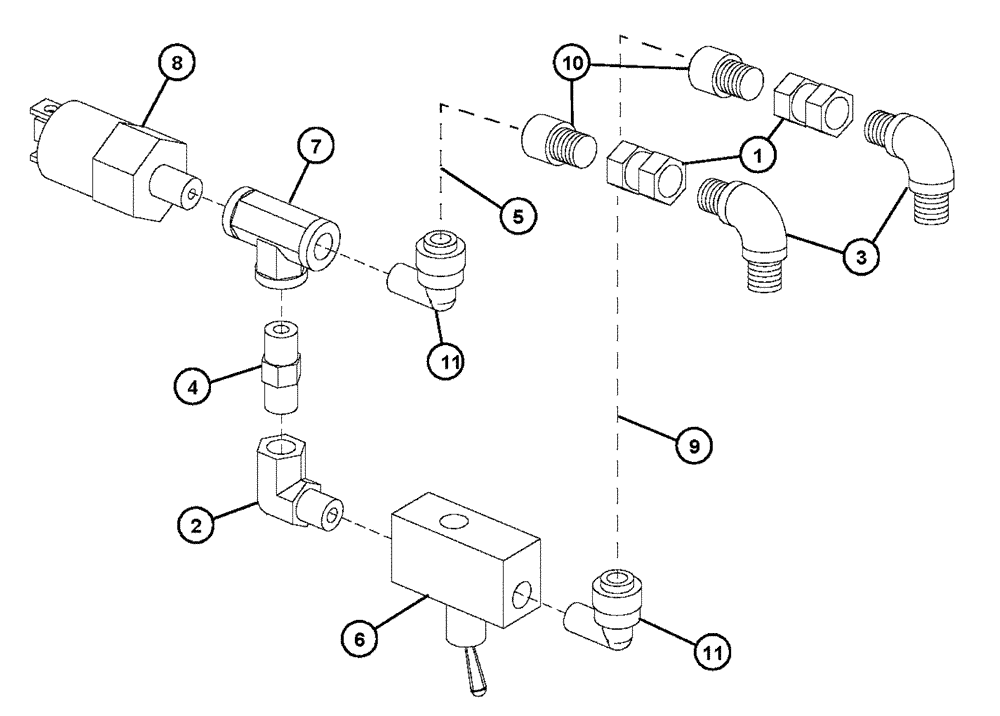

Запчасти Case IH FLX3330B (07-013) - 2-SPEED SHIFT CIRCUIT Pneumatics

1

BN2290340

COUPLING

207ACBHS-4

2шт.

2

BN2290502

FITTING

2102-2-2

1шт.

3

BN2290506

FITTING

2103-4-4

2шт.

4

BN2291410

FITTING

0101-2-2

1шт.

5

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

8шт.

6

NSS

NOT SOLD SEPARAT

ARO 223C On-Off

1шт.

See Fig. 01-002

1шт.

7

BN2296648

FITTING

022T-2-2

1шт.

8

BN2392016

PRESSURE SWITCH

1шт.

9

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

8шт.

10

BN2399401

ADAPTER

Male, 1/4" Tube

2шт.

11

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.
