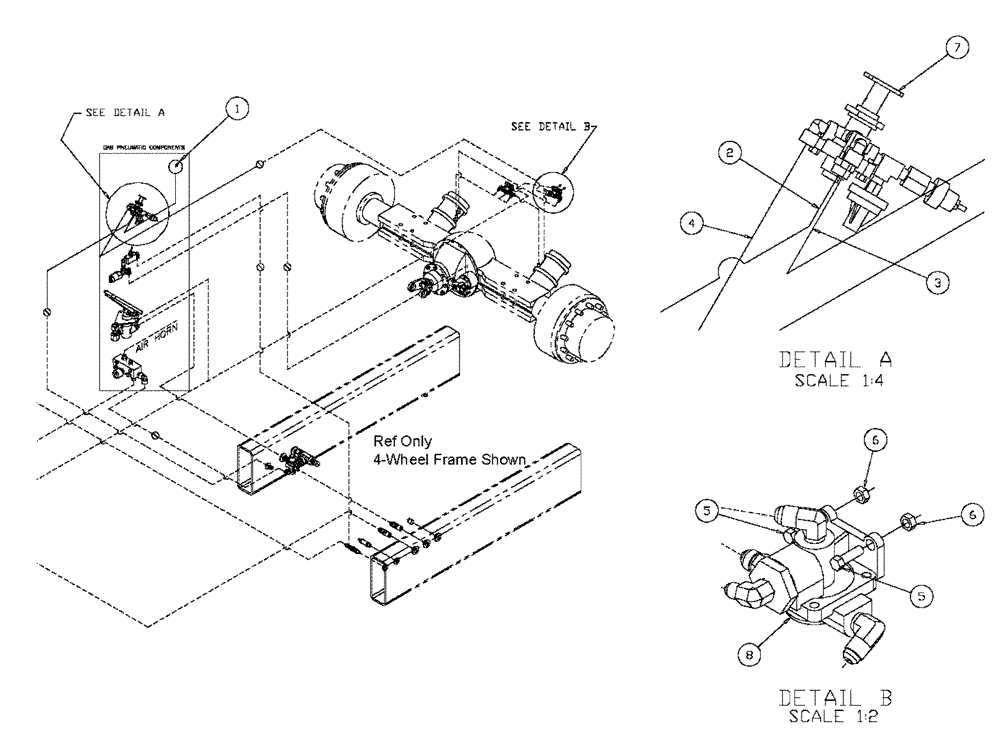

Запчасти Case IH FLX3330B (07-006) - PARKING BRAKE GROUP Pneumatics

1

NSS

NOT SOLD SEPARAT

Kit, Low air Pressure

1шт.

2

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

4шт.

3

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

2шт.

4

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

5шт.

5

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

6

BN304315

NUT

M8-1.25, FLN, 10.9

2шт.

7

NSS

NOT SOLD SEPARAT

Parking Brake Valve Group

1шт.

See Fig. 07-008

1шт.

8

NSS

NOT SOLD SEPARAT

Quick Release, Park Brake

1шт.

See Fig. 07-009

1шт.
