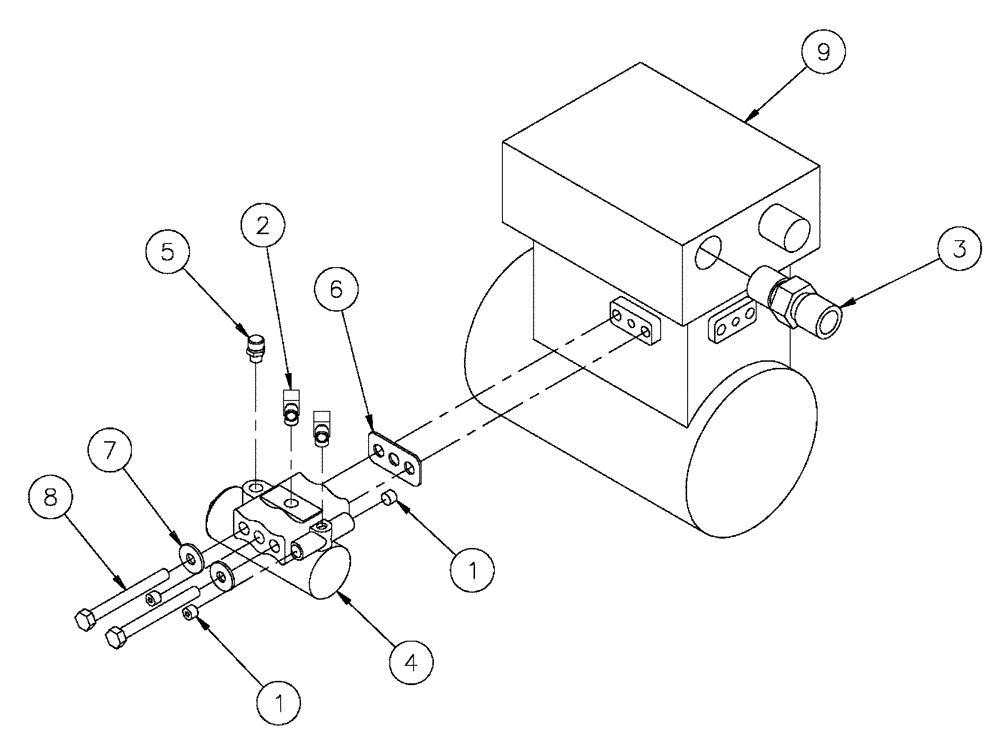

Запчасти Case IH FLX3330B (07-004) - AIR COMPRESSOR GROUP (FLX3300B CASE ENGINE) Pneumatics

1

BN1666155

PLUG

Allen Head 1/8"

3шт.

2

BN2290148

ELBOW

4MJ - 2MP 90º

2шт.

3

BN310713

FITTING

10MJ-12MB

1шт.

4

BN2290733

GOVERNOR

Air, 275491

1шт.

5

BN2293227

BREATHER

301370 1/8" NPT

1шт.

6

BN2390706

GASKET

Governor 236577

1шт.

7

BN300497

WASHER,M8, 10.9

2шт.

8

BN301313

NUT

M8-1.25 X 75, HH, 10.9

2шт.

9

BN314871

Compressor, 300 HP CDC

1шт.

NSS

NOT SOLD SEPARAT

Air Compressor, 18.7 CFM

1шт.

Parts Of Compressor, 300 HP CDC, P/N 314871

1шт.

See Fig. 02-036

1шт.
