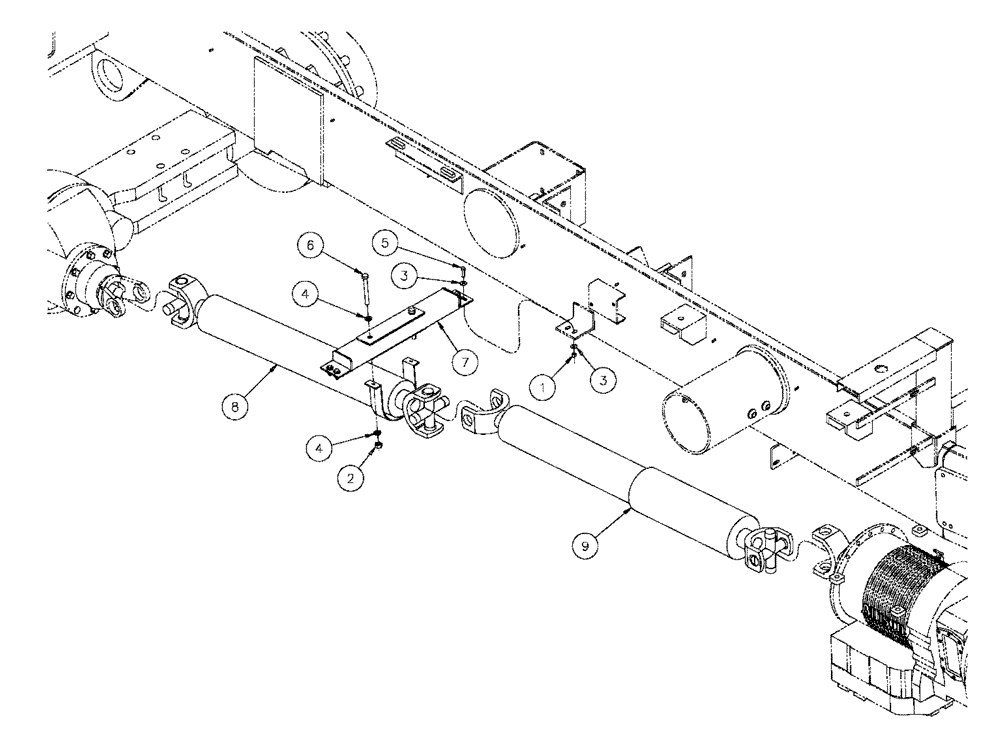

Запчасти Case IH FLX3330B (03-005) - DRIVELINE GROUP (FLX3300B CAT ENGINE & FLX3330B) (03) - TRANSMISSION

1

BN304419

NUT

M10-1.5, NLN, 10.9

4шт.

2

100038

NUT,M12 x 1.75, Cl 8

2шт.

3

BN300499

WASHER,M10, 10.9

8шт.

4

BN300500

WASHER,M12, 10.9

4шт.

5

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

6

86508622

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

7

BN303064

HANGER

Driveline

1шт.

BN303065

TUBE

Driveline Brkt

1шт.

Service Parts For Ref. 7

1шт.

BN303066

BRACKET, SUPPORTING

Driveline

2шт.

Service Parts For Ref. 7

1шт.

BN303067

BRACKET, SUPPORTING

Driveline

2шт.

Service Parts For Ref. 7

1шт.

8

BN313908

DRIVE SHAFT

Solid With Hanger

1шт.

BN2294170

U-JOINT SPIDER

1шт.

Service Parts For Ref. 8

1шт.

BN307686

HANGER

(1710 HD)

1шт.

Service Parts For Ref. 8

1шт.

BN307687

YOKE

End (1710 HD)

1шт.

Service Parts For Ref. 8

1шт.

BN307688

WASHER

1шт.

Service Parts For Ref. 8

1шт.

BN307689

NUT

(1710 HD)

1шт.

Service Parts For Ref. 8

1шт.

BN313908

DRIVE SHAFT

Solid With Hanger

1шт.

Service Parts For Ref. 8

1шт.

9

BN315238

DRIVEN SHAFT

1710 HD Slip 61.5

1шт.
