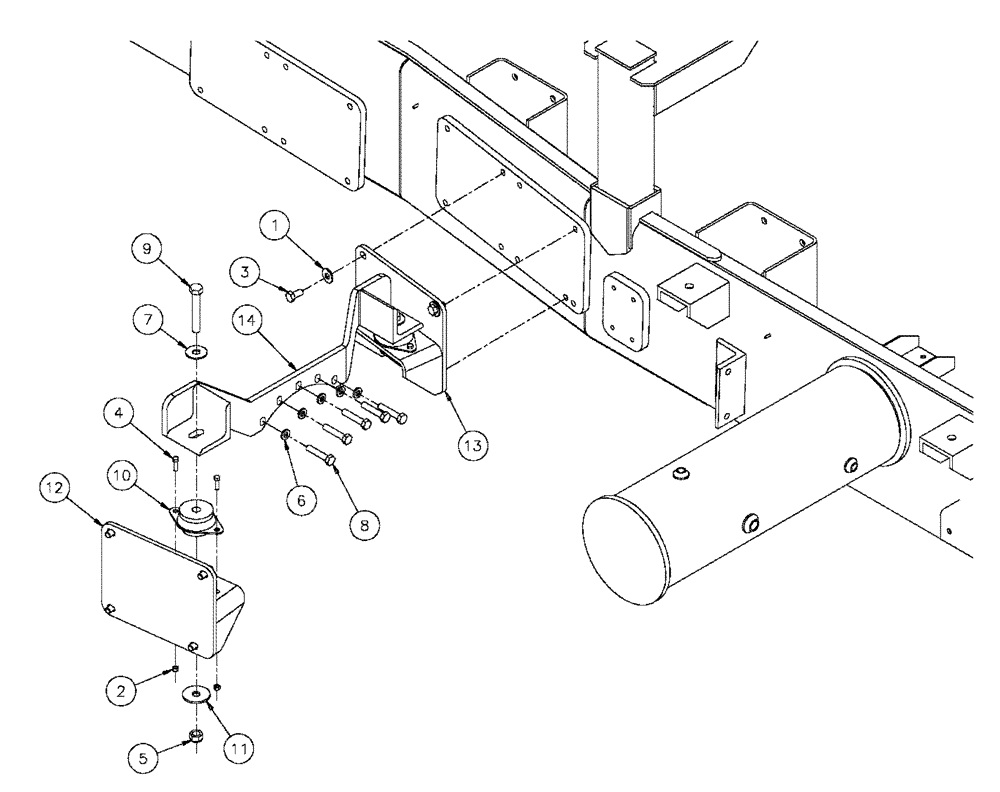

Запчасти Case IH FLX3330B (03-004) - TRANSMISSION MOUNTING (FLX3300B CASE ENGINE) (03) - TRANSMISSION

1

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

2

BN304419

NUT

M10-1.5, NLN, 10.9

4шт.

3

BN300367

BOLT

1/2-20 X 1, HH, G8

8шт.

4

BN300389

BOLT

Hex, M12 x 35, 8.8, Full Thd

4шт.

5

832-46416

NUT,M16 x 2, Cl 8

2шт.

6

BN300500

WASHER,M12, 10.9

5шт.

7

BN300501

WASHER

M16, FW, 10.9

2шт.

8

BN301356

BOLT

M12-1.75 X 60, HH, 10.9

5шт.

9

BN302765

BOLT

M16-2 X 100, HH, 10.9

2шт.

10

BN306728

ENGINE MOUNT

2шт.

11

BN308164

WASHER

Rebound

2шт.

12

BN314619

MOUNTING PLATE

Transmission/Frame, RS

1шт.

13

BN314620

MOUNTING PLATE

Transmission/Frame, CS

1шт.

14

BN317687

MOUNTING PLATE

Rear Transmission

1шт.
