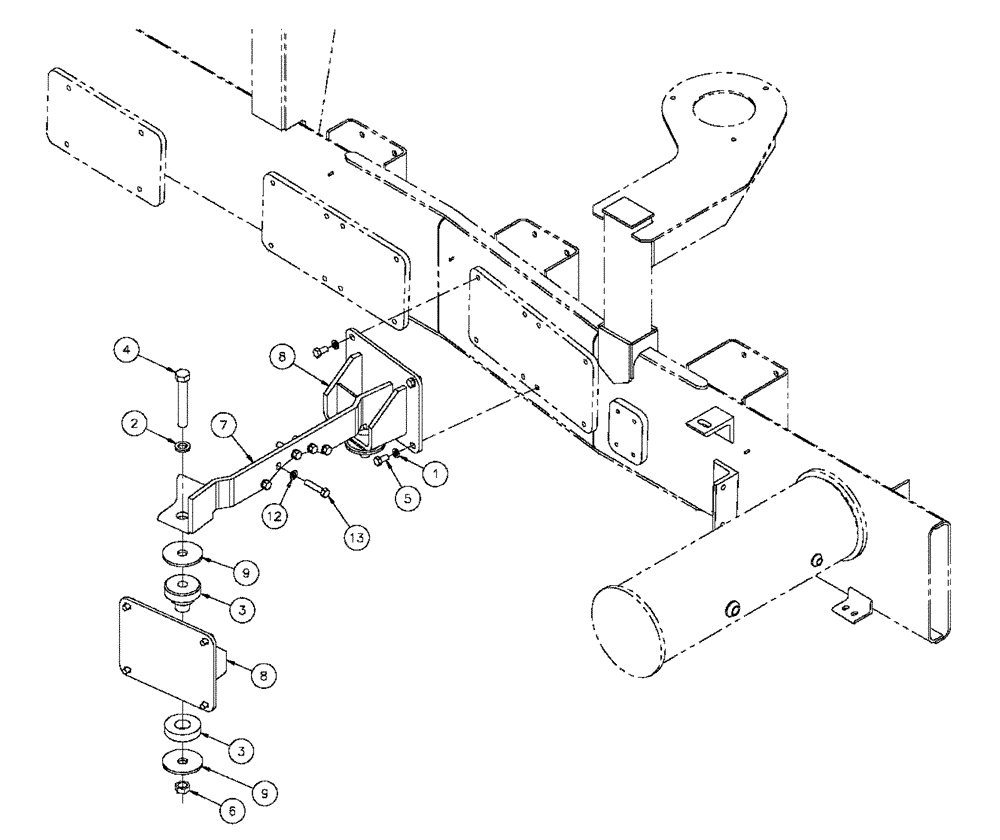

Запчасти Case IH FLX3330B (03-003) - TRANSMISSION MOUNTING (FLX3300B CAT ENGINE & FLX3330B) (03) - TRANSMISSION

1

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

2

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

2шт.

3

BN300012

DAMPER

Vibration, Engine

2шт.

4

814-22140

BOLT,Hex, M22 x 140mm, Cl 8.8

M22-2.5 X 140, HH, 10.9

2шт.

5

BN300367

BOLT

1/2-20 X 1, HH, G8

8шт.

6

86729942

NUT,M22 x 2.5, Cl 8

2шт.

7

BN315222

MOUNTING PLATE

1шт.

8

BN301983

SUPPORT

Rear Eng Frame

2шт.

9

BN302284

WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk

Rebound, 3.88 od x .94 id x .25

4шт.

12

BN300499

WASHER,M10, 10.9

5шт.

13

BN301350

BOLT

M10-1.5 X 190, HH, 10.9

5шт.
