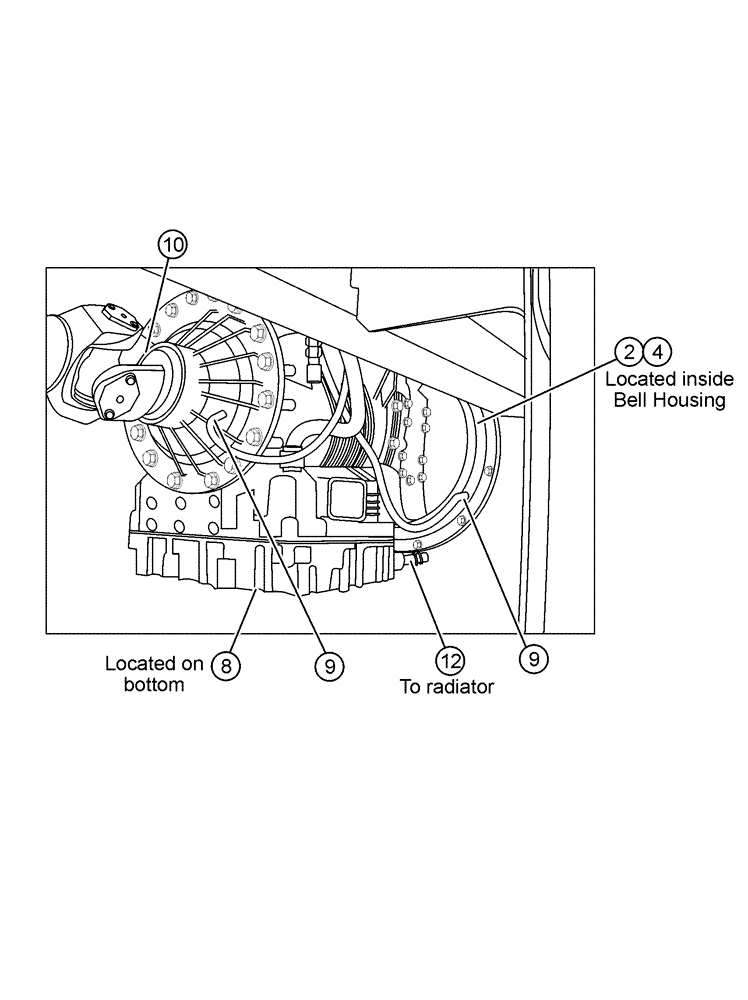

Запчасти Case IH FLX3330B (03-002[01]) - TRANSMISSION GROUP (FLX3300B CASE ENGINE) (03) - TRANSMISSION

1

BN317581

TRANSMISSION

MD3060, TC421, CDC

1шт.

For A Complete Transmission

1шт.

2

BN302976

GEAR

MD On #1 To #2 FW

1шт.

4

BN303119

PLATE

Flex, MD3066

1шт.

5

NSS

NOT SOLD SEPARAT

Selector Assembly

1шт.

See Fig. 03-007

1шт.

6

BN305692

BOX

Relay

1шт.

7

BN312526

CONTROL UNIT

ECU, Transmission, MD3060

1шт.

FLX3300B Cat Engine & FLX3330B

1шт.

7

BN306282

CONTROL UNIT

ECU, Transmission, MD3066

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

FLX3300B Case Engine

1шт.

8

87743577

SERVICE KIT

High Capacity Filter, Allison 295489

1шт.

9

BN306289

SENSOR

Transmission In/Output

2шт.

10

BN307662

YOKE

MD

1шт.

BN2402071-005

DIPSTICK

Transmission Fluid

1шт.

Not Shown

1шт.

12

BN302655

FITTING

12Mor-12Mb

3шт.

BN302639

ELBOW

12 MOR-12 MB x 45

1шт.

Same Part Of P/N. BN302655 But Opposite Side

1шт.

BN303489

HOSE

Transmission To Radiator, -12 x -12 x 73" Long

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.
