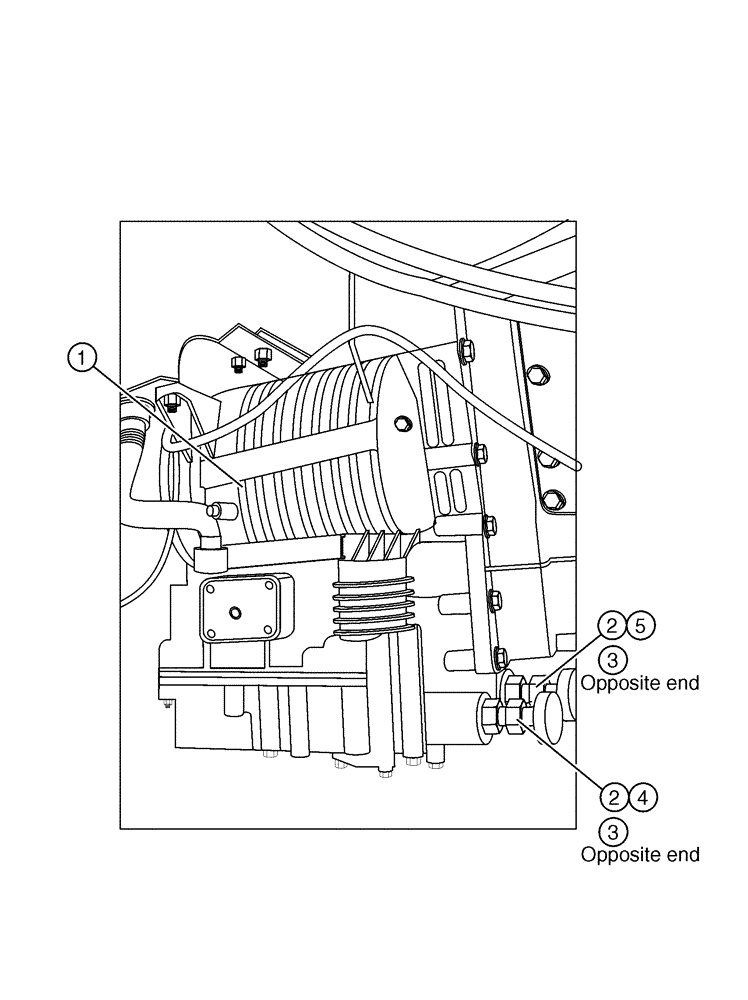

Запчасти Case IH FLX3330B (03-001[01]) - TRANSMISSION GROUP (FLX3300B CAT ENGINE & FLX3330B) (03) - TRANSMISSION

1

BN304256

TRANSMISSION

Allison, MD3060/330

1шт.

For A Complete Transmission

1шт.

87743577

SERVICE KIT

High Capacity Filter, Allison 295489

1шт.

Service Parts For Ref. 1

1шт.

BN2402071-010

MOUNTING PLATE

TPS

1шт.

Service Parts For Ref. 1

1шт.

BN2402071-014

MODULE

Vehicle Interface

1шт.

Service Parts For Ref. 1

1шт.

BN2402071-016

REPAIR KIT

Adaptation 295/330

1шт.

Service Parts For Ref. 1

1шт.

Includes Refs. 3 - 8

1шт.

BN2402071-003

BALANCER

29503328

3шт.

Parts Of Trans., Allison, MD3060/330, P/N BN304256

1шт.

BN2402071-004

PLATE

Flex, 29503696

1шт.

Parts Of Trans., Allison, MD3060/330, P/N BN304256

1шт.

BN2402071-005

DIPSTICK

Transmission Fluid

1шт.

Parts Of Trans., Allison, MD3060/330, P/N BN304256

1шт.

BN2402071-006

PLATE

1шт.

Parts Of Trans., Allison, MD3060/330, P/N BN304256

1шт.

BN2402071-007

Ring 29503695

1шт.

Parts Of Trans., Allison, MD3060/330, P/N BN304256

1шт.

BN2402071-008

RING GEAR

Assembly

1шт.

Parts Of Trans., Allison, MD3060/330, P/N BN304256

1шт.

2

BN57233

FITTING

12MOR-16MB

2шт.

3

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

4

BN316721

HOSE

-12 X 66

1шт.

5

BN313285

HOSE

-12 X 70

1шт.

6

BN7146462

MOUNT

MD Harness Support

1шт.

7

BN2291671-001

REPAIR KIT

Cable Anchor

1шт.

Behind Engine Fan Blade

1шт.

8

BN305699

FRAMEWORK

TPS Titan

1шт.

9

BN306108

BRACKET

TPS

1шт.

Behind Engine Fan Blade

1шт.

10

NSS

NOT SOLD SEPARAT

Harness, Transmission, Interface

1шт.

NSS

NOT SOLD SEPARAT

ECU, Transmission, MD3060

1шт.

Not Shown

1шт.

See Fig. 03-002

1шт.

NSS

NOT SOLD SEPARAT

Transmission In/Output Sensor

2шт.

Not Shown

1шт.

See Fig. 03-002

1шт.

NSS

NOT SOLD SEPARAT

Yoke, MD3060 (1710)

1шт.

Not Shown

1шт.

See Fig. 03-002

1шт.

NSS

NOT SOLD SEPARAT

1шт.

Not Shown

1шт.

See Fig. 03-007

1шт.

NSS

NOT SOLD SEPARAT

Relay Box

1шт.

Not Shown

1шт.

See Fig. 03-002

1шт.
