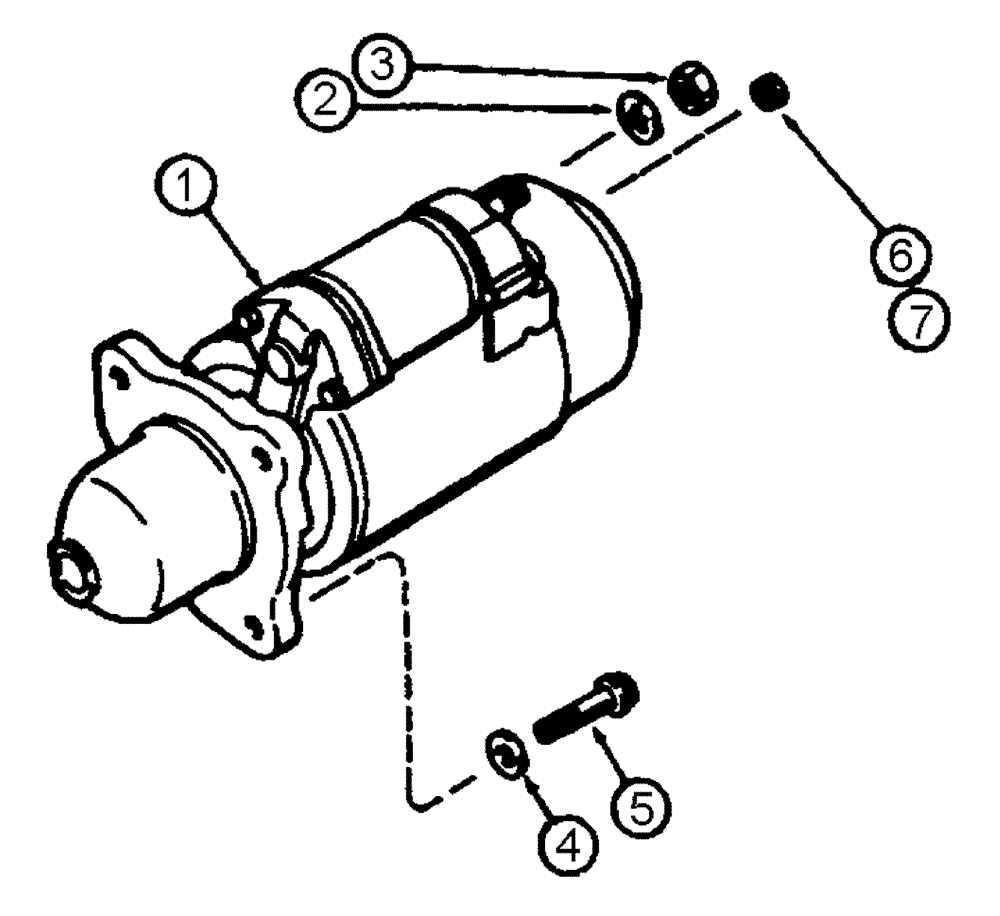

Запчасти Case IH FLX3330B (02-063) - STARTER GROUP (FLX3300B CASE ENGINE) (01) - ENGINE

1

193432A1

STARTING MOTOR

1шт.

2

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

3

829-4412

NUT,Thin, M12 x 1.75, Cl 5

1шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

5

868-12040

12 PT SCREW,M12 x 40mm, Cl 12.9

3шт.

6

258820A1

SCREW

M5 x 8

1шт.

7

86509828

LOCK WASHER,M5

1шт.

J934041

SPACER

Starter, CDC

1шт.

Not Shown

1шт.
