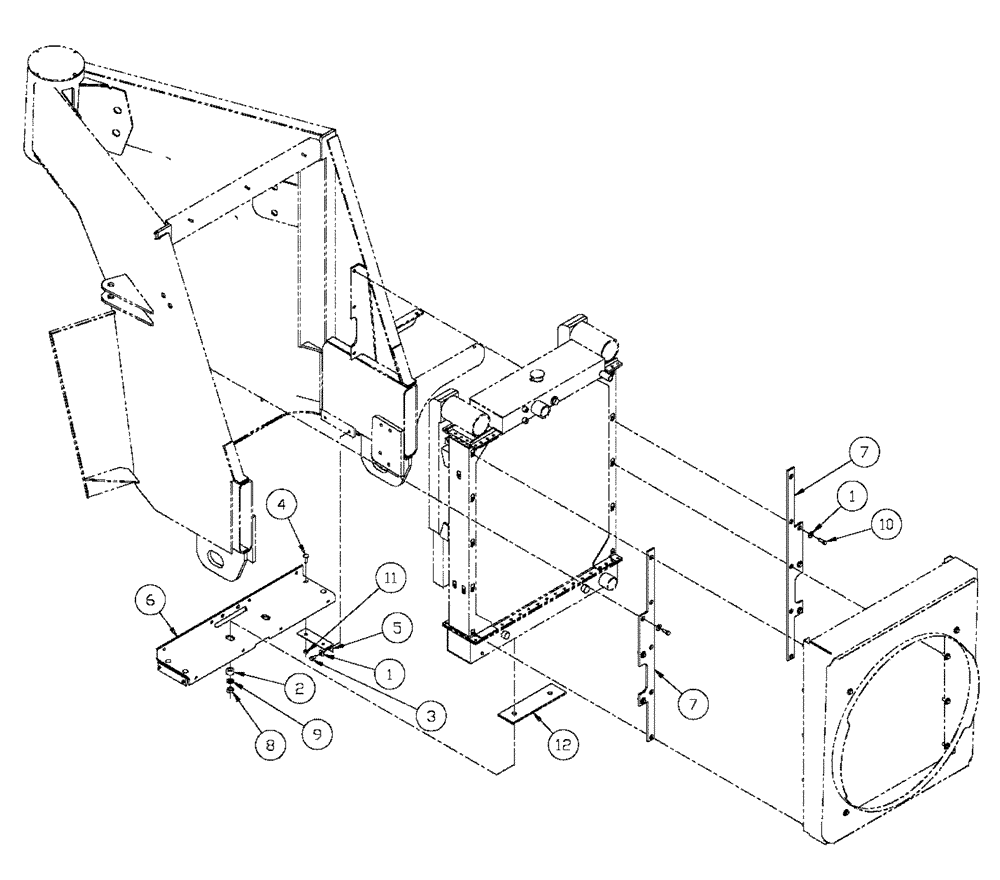

Запчасти Case IH FLX3330B (02-059) - RADIATOR MOUNTING ASSEMBLY (01) - ENGINE

1

BN50145

WASHER

3/8, G5

10шт.

2

BN2297363

MOUNTING PLATE

Isolator 200106R1

2шт.

3

428-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

Hex, 3/8"-24 x 5/8", G8

4шт.

4

BN300369

BOLT

3/8-16 X 1.25, CB, G8

4шт.

5

BN302291

MOUNTING PLATE

2шт.

6

BN302292

MOUNTING PLATE

Radiator

1шт.

7

BN314691

MOUNTING PLATE

Radiator, RS

2шт.

8

86637650

NUT,5/8"-18, GB

2шт.

9

BN50155

WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk

5/8", G5

2шт.

10

BN50367

BOLT

3/8"-16 x 1", G5

6шт.

11

BN50756

NUT

3/8-16, NLN, G5

4шт.

12

BN7146236

RADIATOR

1шт.
