(02-055) - BAFFLE ASSEMBLY (FLX3300B CASE ENGINE & FLX3330B)

Запчасти Case IH FLX3330B (02-055) - BAFFLE ASSEMBLY (FLX3300B CASE ENGINE & FLX3330B) (01) - ENGINE

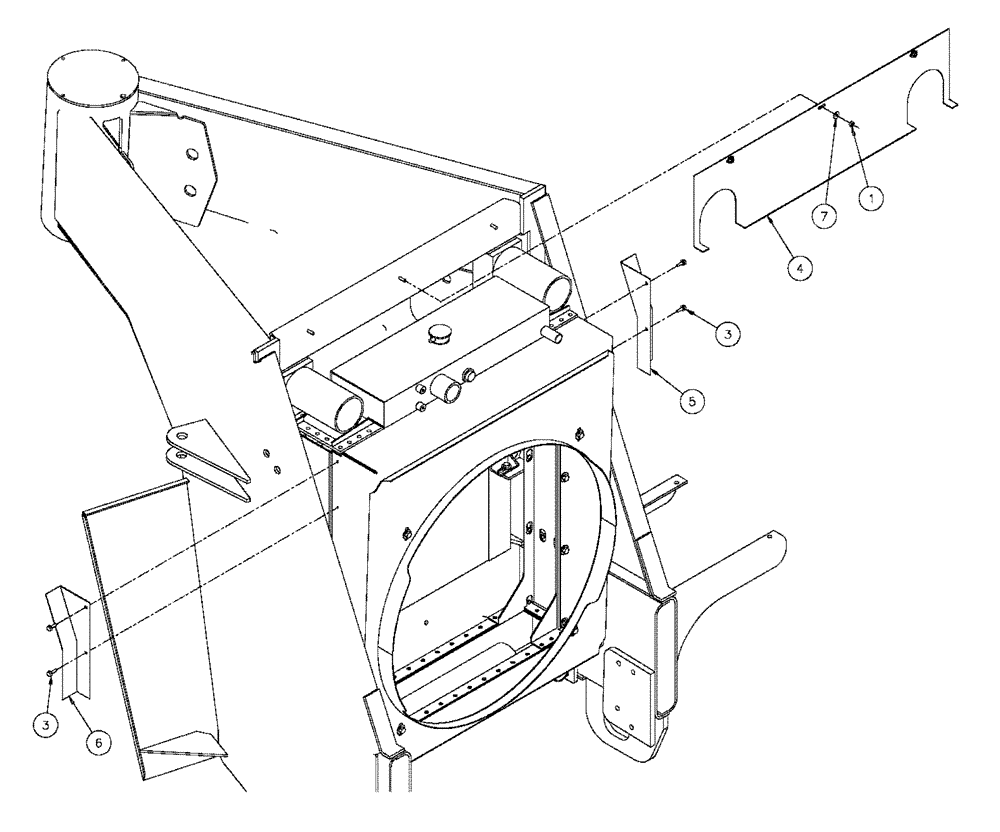

Схема запчастей Case IH FLX3330B - (02-055) - BAFFLE ASSEMBLY (FLX3300B CASE ENGINE & FLX3330B) (01) - ENGINE
3
7
3
6
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN50796

NUT

1/4-20, NLN, G5

3шт.

2

BN2395066

SEAL

Trim, SD-161

2шт.

3

BN313961

SCREW,Hex, 1/4" x 3/4", SST

1/4" X 3/4", HH, STP, SS

4шт.

4

BN315136

BAFFLE

CAC Tubes

1шт.

5

BN315137

BAFFLE

Radiator, CS

1шт.

6

BN315138

BAFFLE

Radiator, RS

1шт.

7

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

3шт.
