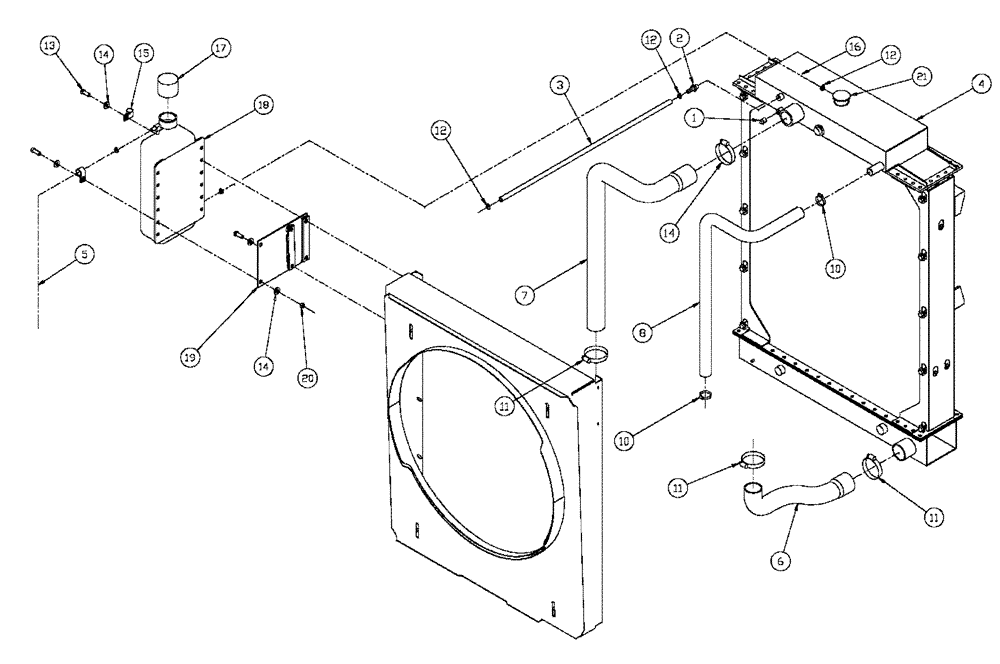

Запчасти Case IH FLX3330B (02-053) - RADIATOR COMPONENTS (FLX3300B CAT ENGINE & FLX3330B) (01) - ENGINE

1

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

2

BN2290646

FITTING

744440

1шт.

3

BN2390873

HOSE,0.31" ID

Fuel, 815-25R

1шт.

4

BN307183

RADIATOR

30 X 36 Core

1шт.

5

BN314898

HOSE,0.31" ID x 50.00"

1шт.

6

BN315211

RADIATOR HOSE,2.00" ID, 2.25" ID x 11.28", SAE 20R4 Class D1 per SAE J20

Lower Radiator

1шт.

7

BN315216

RADIATOR HOSE,2.00" ID, 2.25" ID x 24.32", SAE 20R4 Class D1 per SAE J20

Upper Radiator

1шт.

8

BN315219

HOSE,1.00" ID x 24.37", SAE J20, SAE 20R4 Class D1

Engine Fill

1шт.

10

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

11

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

4шт.

12

BN76094

HOSE CLAMP

SS #M4

3шт.

13

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

14

BN300497

WASHER,M8, 10.9

8шт.

15

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

16

BN318459

HOSE,0.31" ID x 38.00"

1шт.

17

1547924C1

CAP

coolant recovery bottle

1шт.

18

87481454

BOTTLE

Tank, Coolant Recovery, 5 qt

1шт.

19

BN318614

BASE PLATE

Recovery Bottle

1шт.

20

86528579

NUT,M8 x 1.25

2шт.

21

A170241

RADIATOR CAP

15 psi

1шт.
