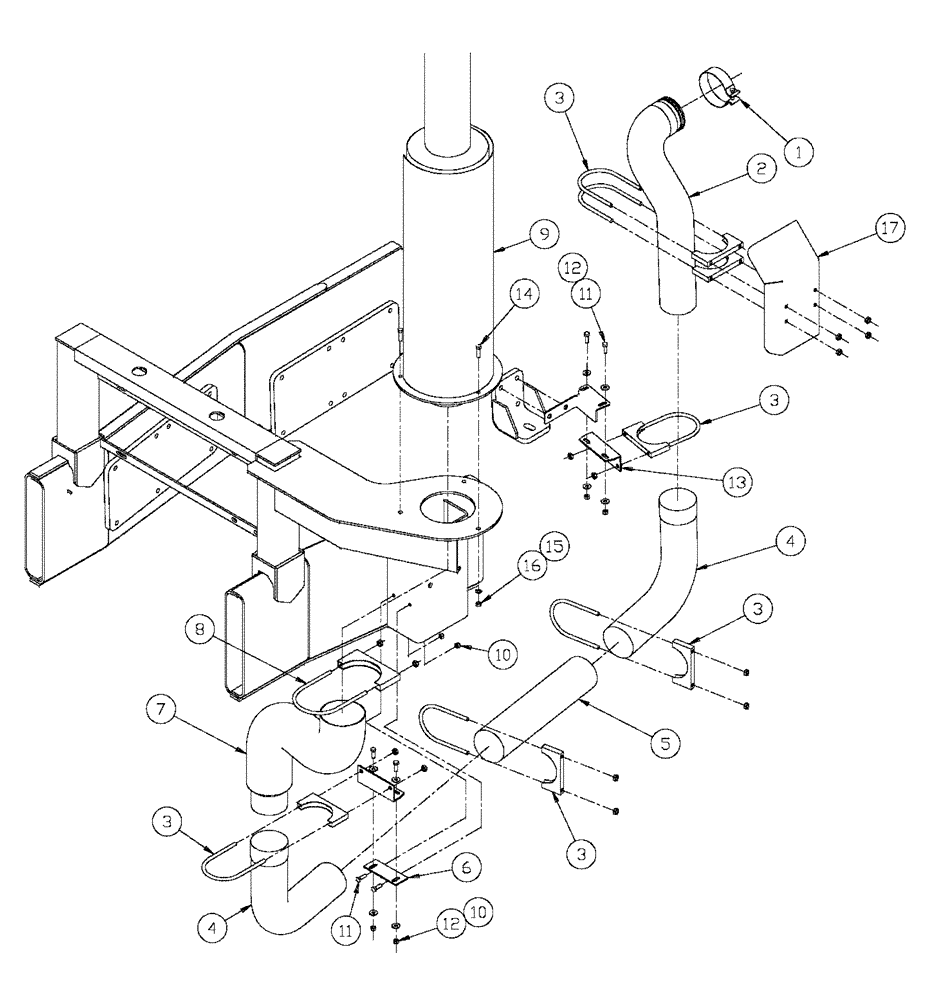

Запчасти Case IH FLX3330B (02-050) - AIR EXHAUST GROUP (FLX3300B CASE ENGINE) (01) - ENGINE

1

A170807

CLAMP,102mm ID

4" T-Bolt

1шт.

2

BN314410

TUBE

Exhaust

1шт.

3

BN25927

CLAMP,104.8mm ID

4" Muffler

6шт.

4

BN314752

ELBOW

90, Exhaust

2шт.

5

BN303467

HOSE,4.00" ID x 18.00"

1шт.

6

BN314753

BRACKET

Exhaust Hanger

1шт.

7

BN314409

TUBE

Exhaust

1шт.

8

BN303459

PIPE CLAMP

Muffler, 5"

1шт.

9

NSS

NOT SOLD SEPARAT

14-1800 CFM

1шт.

See Fig. 02-052

1шт.

10

86528579

NUT,M8 x 1.25

8шт.

11

80043233

SCREW

Hex, M8 x 20, 10.9

8шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

8шт.

13

BN314754

BRACKET

Exhaust Hanger

2шт.

14

BN300390

BOLT

M10-1.5 X 30, HH, 8.8

3шт.

15

BN300490

BOLT

M10, FW, 8.8

3шт.

16

BN304419

NUT

M10-1.5, NLN, 10.9

3шт.

17

BN318814

SHIELD

Heat, 4" Elbow

1шт.
