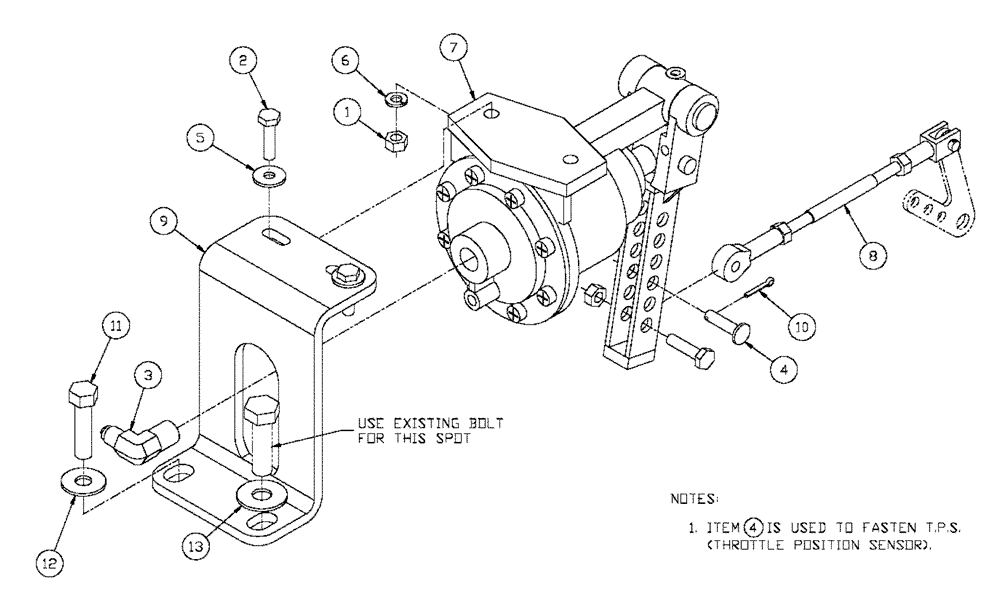

Запчасти Case IH FLX3330B (02-033) - THROTTLE ASSEMBLY (FLX3300B CAT ENGINE & FLX3330B) (01) - ENGINE

1

BN1470002

NUT

1/4-20, HN, G5

2шт.

2

BN1913317C

BOLT

HH 1/4-20 X 1 NC G5

2шт.

3

BN2290506

FITTING

2103-4-4

1шт.

4

BN2291602

PIN

Clevis 1/4X1

1шт.

5

BN2303140

PLATE

Flat, 1/4

2шт.

6

80682

LOCK WASHER,1/4"

2шт.

7

BN305697

CYLINDER

Air Throttle

1шт.

8

NSS

NOT SOLD SEPARAT

Rod, Throttle Linkage

1шт.

See Fig. 02-034

1шт.

9

BN305707

BRACKET

Throttle 3208

1шт.

10

BN309411

COTTER PIN

3/32 X 3/4

1шт.

11

BN50367

BOLT

3/8"-16 x 1", G5

1шт.

12

BN300175

WASHER

3/8", G8

1шт.

13

86637952

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

0.469 x 0.922 x 0.065, Hardened

1шт.
