Запчасти Case IH FLX3300B (02-022) - AC COMPRESSOR GROUP (01) - ENGINE

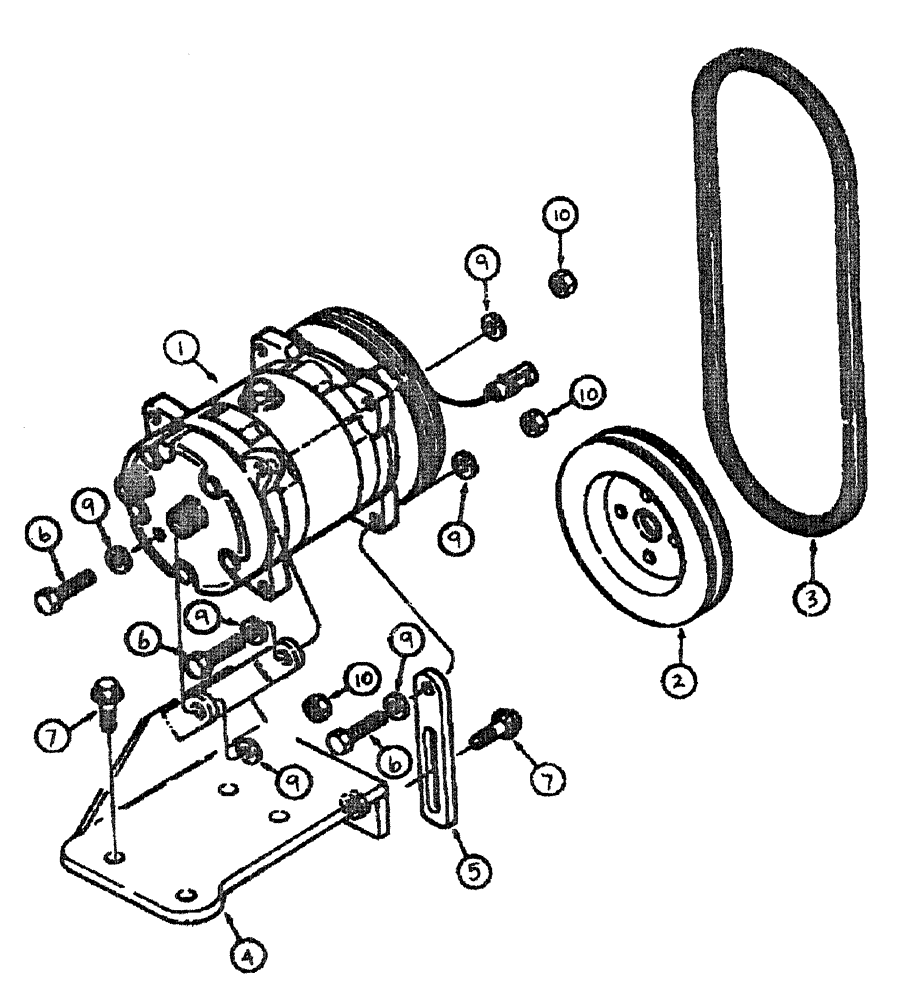

Схема запчастей Case IH FLX3300B - (02-022) - AC COMPRESSOR GROUP (01) - ENGINE
9
9
9
3
1
10
7
5
9
7
2
10
10
9
9
4
6
6
6

Артикул

Название

Примечание

Количество

1

1999755C3

COMPRESSOR

assembly, air conditioning, 12V double groove

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

1

86993462R

REMAN-COMPRESSOR

FLX3300B (12/99-9/02); Reman For New P/N 1999755C3

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

2

J919624

PULLEY

Compressor Drive, Years: -01-SEP-09

1шт.

3

131403C1

V-BELT,0.50" W x 38.50" L

A/C

1шт.

2

84167711

PULLEY,179.56mm OD

Compressor Drive, Start Year: 01-SEP-09

1шт.

4

BN324901

MOUNTING PLATE

A/C Compressor

1шт.

5

84716C1

SUPPORT

Strap, Adjusting Compressor

1шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

7

905-10025

BOLT,Hex Flg, M10 x 25mm

5шт.

8

892-11010

LOCK WASHER,M10

3шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 17
