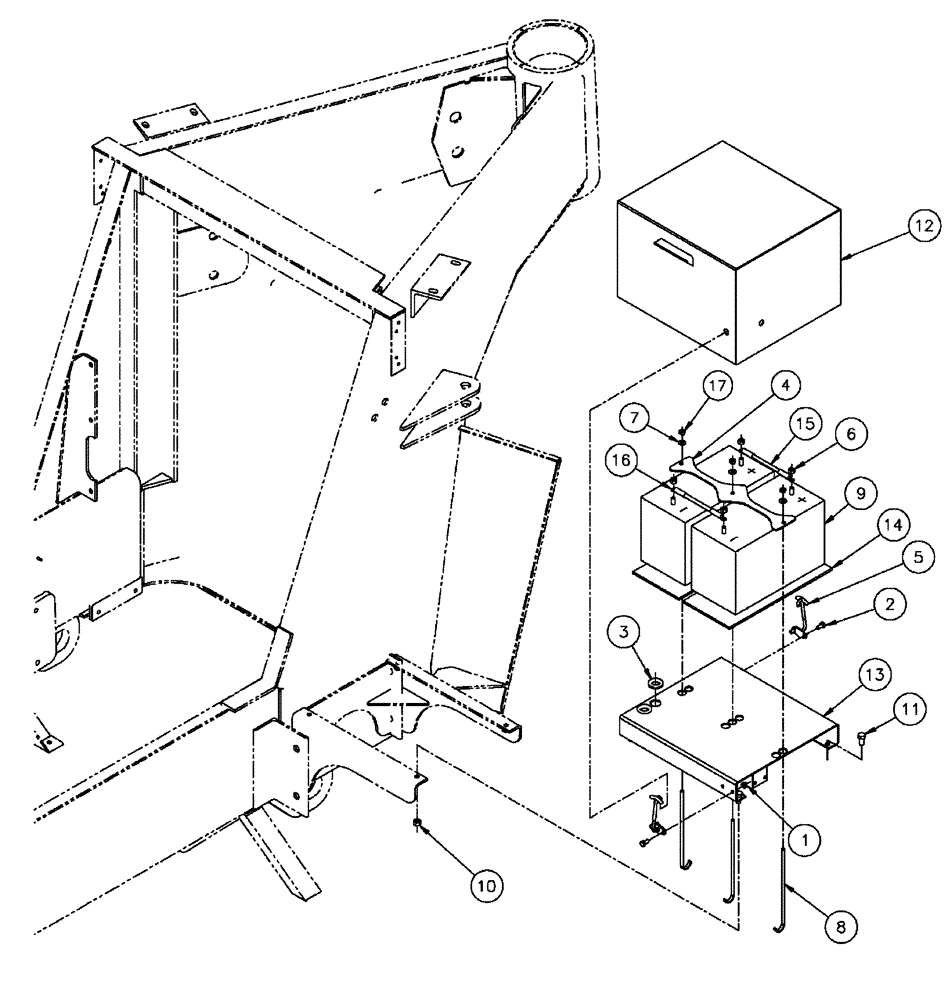

Запчасти Case IH FLX3300B (02-021) - BATTERY GROUP (01) - ENGINE

1

BN1470402C

FLANGE NUT

1/4-20, FLN, G8

4шт.

2

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

3

BN2290753

GROMMET

2870 (7/8" Hole)

2шт.

4

BN321501

CLAMP

Holddown, Battery

1шт.

5

BN2293347

CATCH

5171531

2шт.

6

BN2294482

FLANGE NUT

Flange SS 3/8 Nc

4шт.

7

BN2303143

WASHER

Flat, 5/16

3шт.

8

BN2390287

BOLT

Battery 390-005

3шт.

9

91734C1

WET BATTERY

12V, 950CCA, Stud

2шт.

10

BN305108

FLANGE BOLT,3/8" - 16, SST

3/8-16, FLN, SS

4шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

12

BN7140021

LID

Battery Box

1шт.

13

BN7140024

BOX

Battery Base Weldment

1шт.

14

BN7140027

PAD

Battery

2шт.

15

BN320013

CABLE

Positive, Battery

1шт.

16

BN320014

CABLE

Negative, Battery

1шт.

17

BN55361

NUT,5/16"-18, Nylon, Stainless

3шт.
