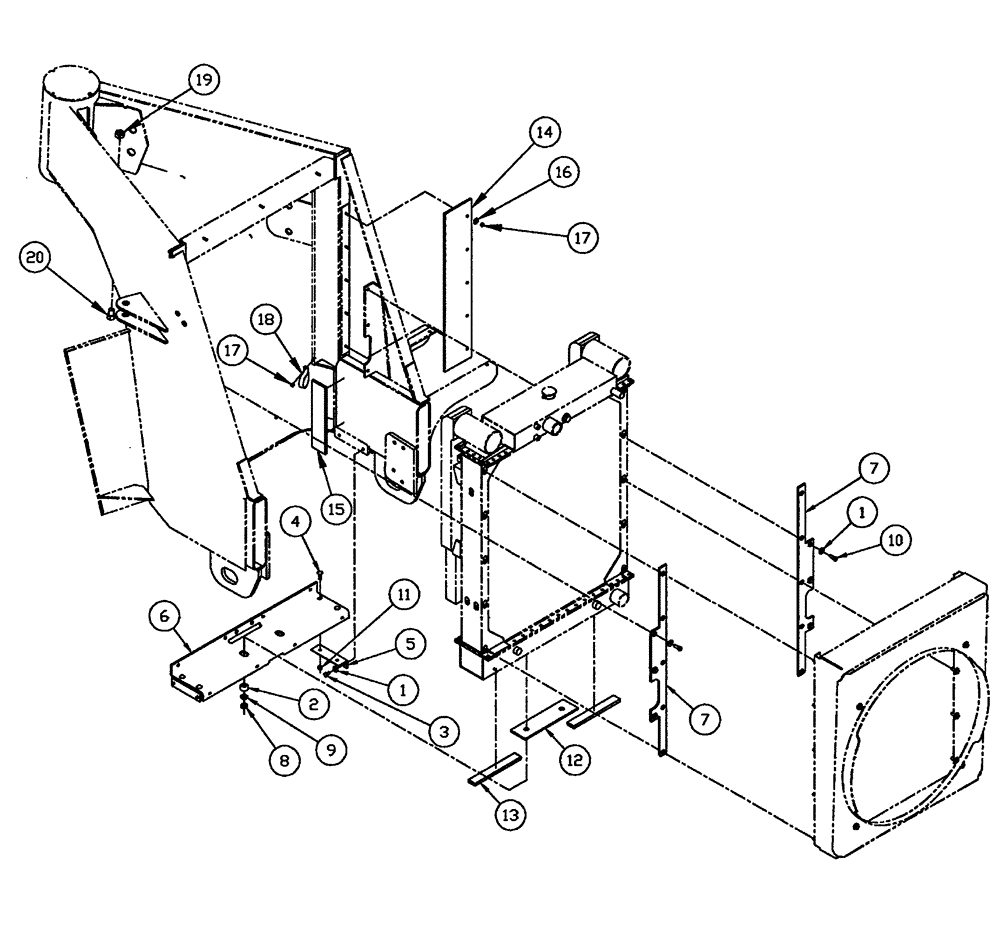

Запчасти Case IH FLX3300B (02-020) - RADIATOR MOUNTING ASSEMBLY (01) - ENGINE

1

BN50145

WASHER

3/8, FW, G5

10шт.

2

BN2297363

MOUNTING PLATE

Isolator 200106R1

2шт.

3

414-610

3/8-24 X .625, HH, G8

4шт.

4

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

4шт.

5

BN302291

MOUNTING PLATE

Radiator

2шт.

6

BN302292

MOUNTING PLATE

Radiator

1шт.

7

BN314691

MOUNTING PLATE

Radiator, RS

2шт.

8

86637650

NUT,5/8"-18, GB

2шт.

9

BN50155

WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk

5/8", G5

2шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

11

88902

NUT,3/8"-16

4шт.

12

BN7146236

RADIATOR

Pad

1шт.

13

BN322520

FOAM

Radiator Bottom

2шт.

14

BN324848

RUBBER SEAL

Rubber, Radiator

2шт.

15

BN324854

FOAM INSULATION,3" Plug-Female Coupler

Radiator Seal

2шт.

16

BN315876

WASHER

1/4 Fender x 1.25 SS black

10шт.

17

280129

NUT,1/4"-20

11шт.

18

BN570022

CLAMP

vinyl coated 1/2"

1шт.

19

280375

NUT,3/4"-10, GC

1шт.

20

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

1шт.
