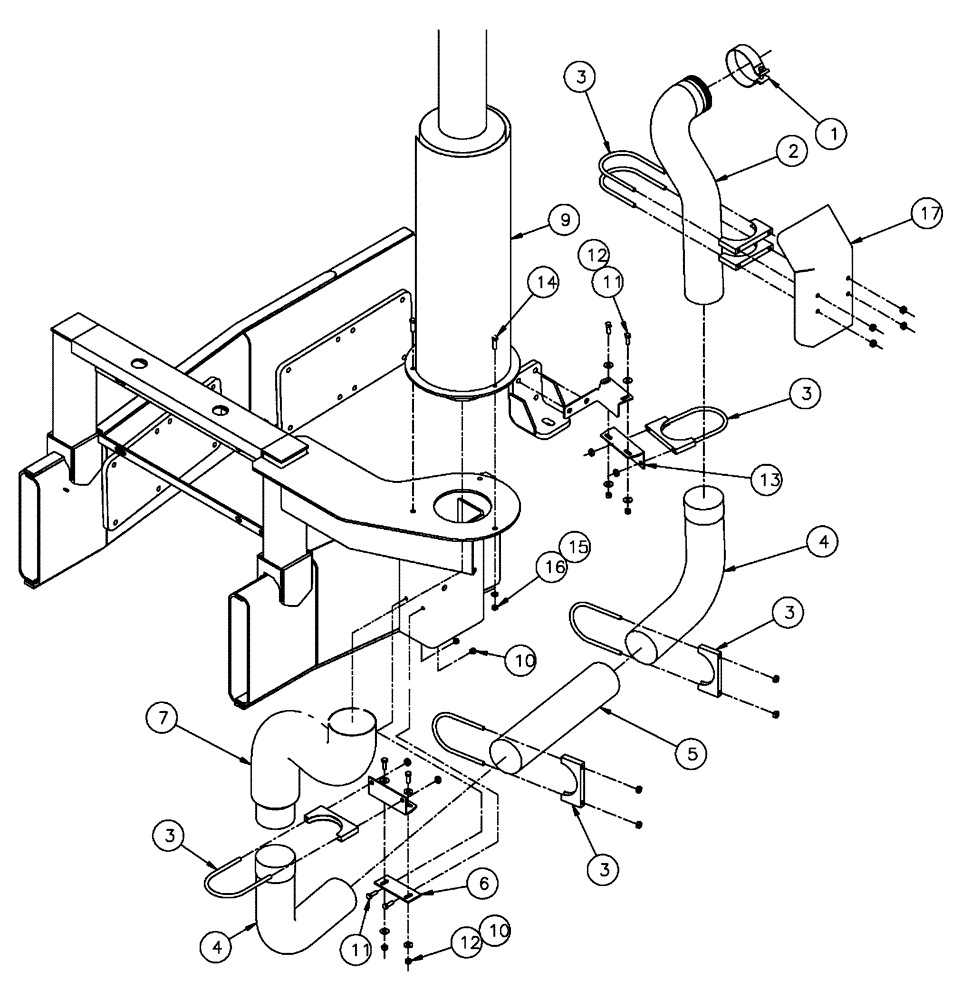

Запчасти Case IH FLX3300B (02-016) - AIR EXHAUST GROUP (01) - ENGINE

1

A170807

CLAMP,102mm ID

4" T-Bolt

1шт.

2

BN314410

TUBE

Exhaust

1шт.

3

BN25927

CLAMP,104.8mm ID

4" Muffler

6шт.

4

BN314752

ELBOW

90, Exhaust

2шт.

5

BN303467

HOSE,4.00" ID x 18.00"

1шт.

6

BN314753

BRACKET

Exhaust Hanger

1шт.

7

BN314409

TUBE

Exhaust

1шт.

9

BN311343

MUFFLER

Assembly, 14-1800 CFM, See Fig 02-015

1шт.

10

86528579

NUT,M8 x 1.25

8шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

8шт.

13

BN314754

BRACKET

Exhaust Hanger

2шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

15

BN300490

BOLT

M10, FW, 8.8

3шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

17

BN318814

SHIELD

Heat, 4" Elbow

1шт.
