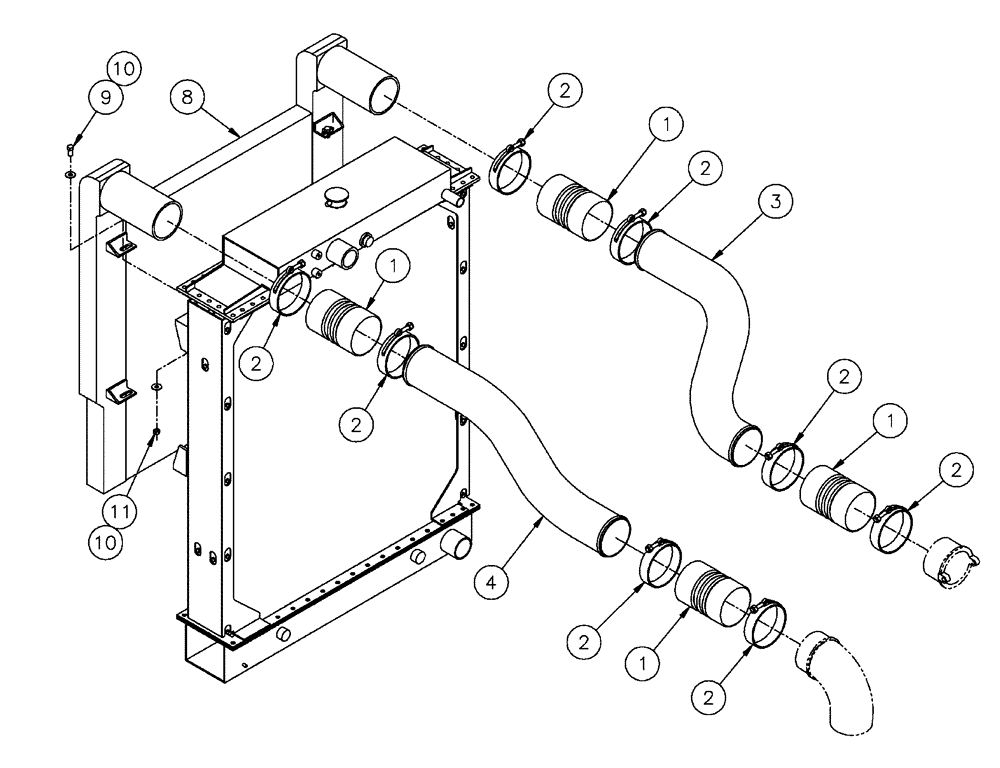

Запчасти Case IH FLX3300B (02-014) - CHARGE AIR COOLER TUBE GROUP (01) - ENGINE

1

BN2390871

HOSE

CAC 4" Series 367

4шт.

2

BN300760

CLAMP

Constant Torque, 4.25"

8шт.

3

BN314542

TUBE

Charge Air Pressure

1шт.

4

BN314541

TUBE

Charge Air Return

1шт.

8

BN314594

COOLER ASSY.

Charge Air, CDC

1шт.

9

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

10

140017

WASHER,M10 x 20mm OD x 2mm Thk

8шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
