Запчасти Case IH FLX3300B (05-001[03]) - REAR TIRE GROUP - 66” GOODYEAR, 16 PLY, TIRE-MTD LH, 66 X 43, 16P, XT Tires

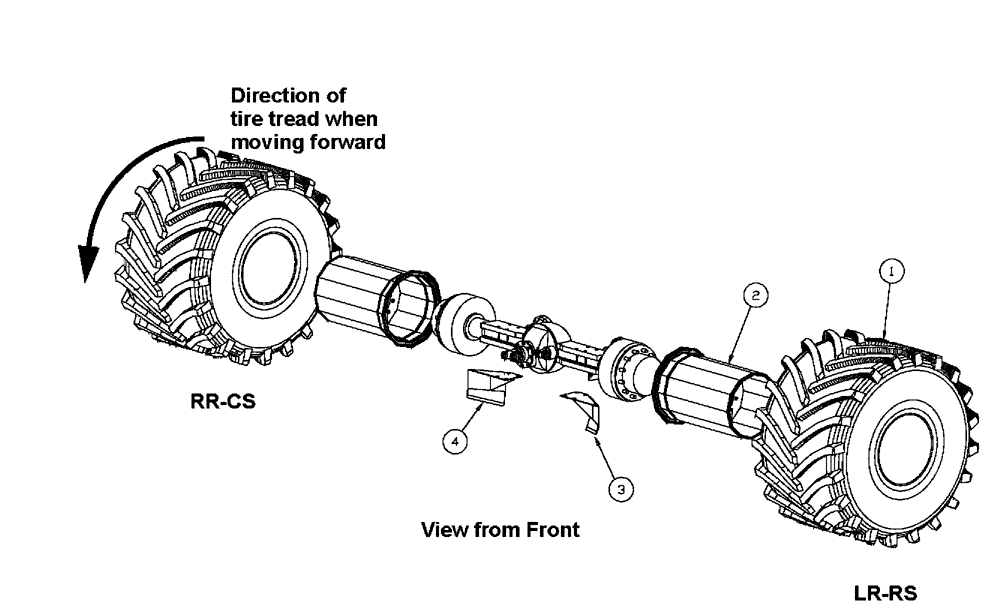

Схема запчастей Case IH FLX3300B - (05-001[03]) - REAR TIRE GROUP - 66” GOODYEAR, 16 PLY, TIRE-MTD LH, 66 X 43, 16P, XT Tires
2
3
4
1

Артикул

Название

Примечание

Количество

1

BN321219

Tire, 66 X 43-25 16 PLY STGXT

1шт.

2

BN323605

WHEEL

36 X 25, 0 Off, SIL

1шт.

2a

BN2391858

O-RING

OR25T Black

1шт.

Service Parts For Ref. 2

1шт.

2b

BN67197

VALVE STEM

TR-600

1шт.

Service Parts For Ref. 2

1шт.

2c

BN2297235

LOCKING RING

LR25T

1шт.

Service Parts For Ref. 2

1шт.

2d

BN2396615

FLANGE

FL025T

1шт.

Service Parts For Ref. 2

1шт.

3

BN7136021

MUD CLEANER

Scraper-Left Rear

1шт.

4

BN7136022

MUD CLEANER

Scraper-Right Rear

1шт.

4a

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

12шт.

4b

333089A1

DECAL

torque wheel nuts

1шт.

Выбрано товаров: 14
