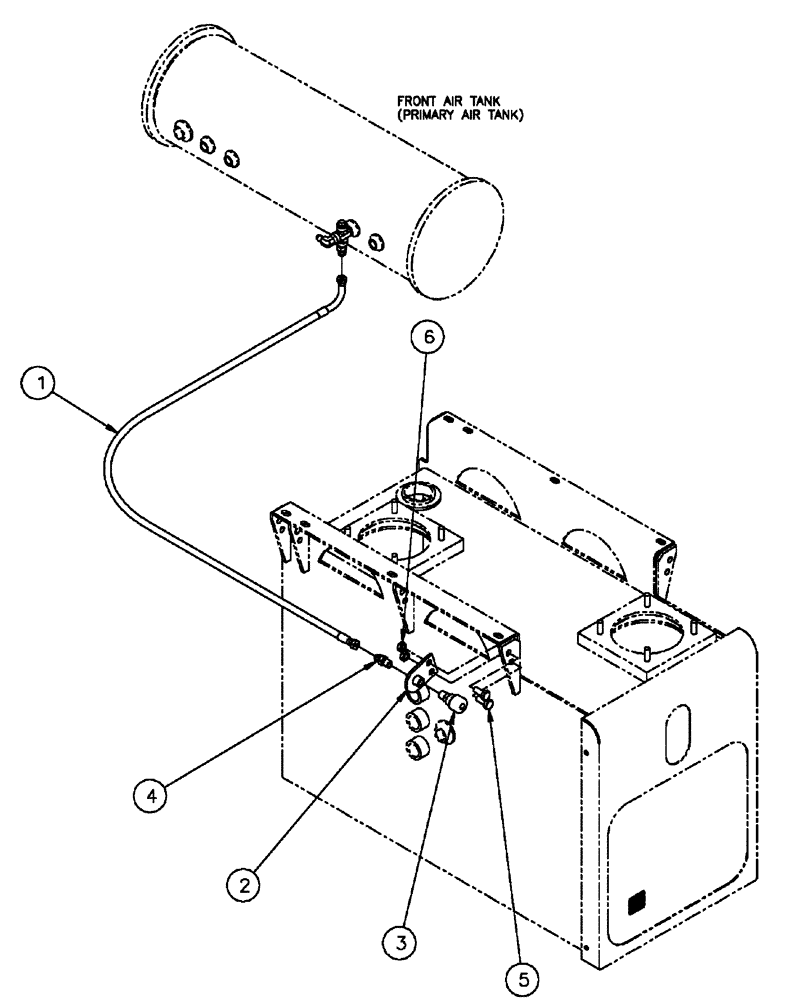

Запчасти Case IH FLX3300B (07-009) - REMOTE COUPLING GROUP Pneumatics

1

BN322680

HOSE

Assembly, 4 X 70"

1шт.

2

BN322577

PLATE

Weldment, Coupling

1шт.

3

BN2393326

COUPLING

B32

1шт.

4

BN21355

ADAPTER,1/4"-18 NPT x 7/16-20 JIC

1шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
