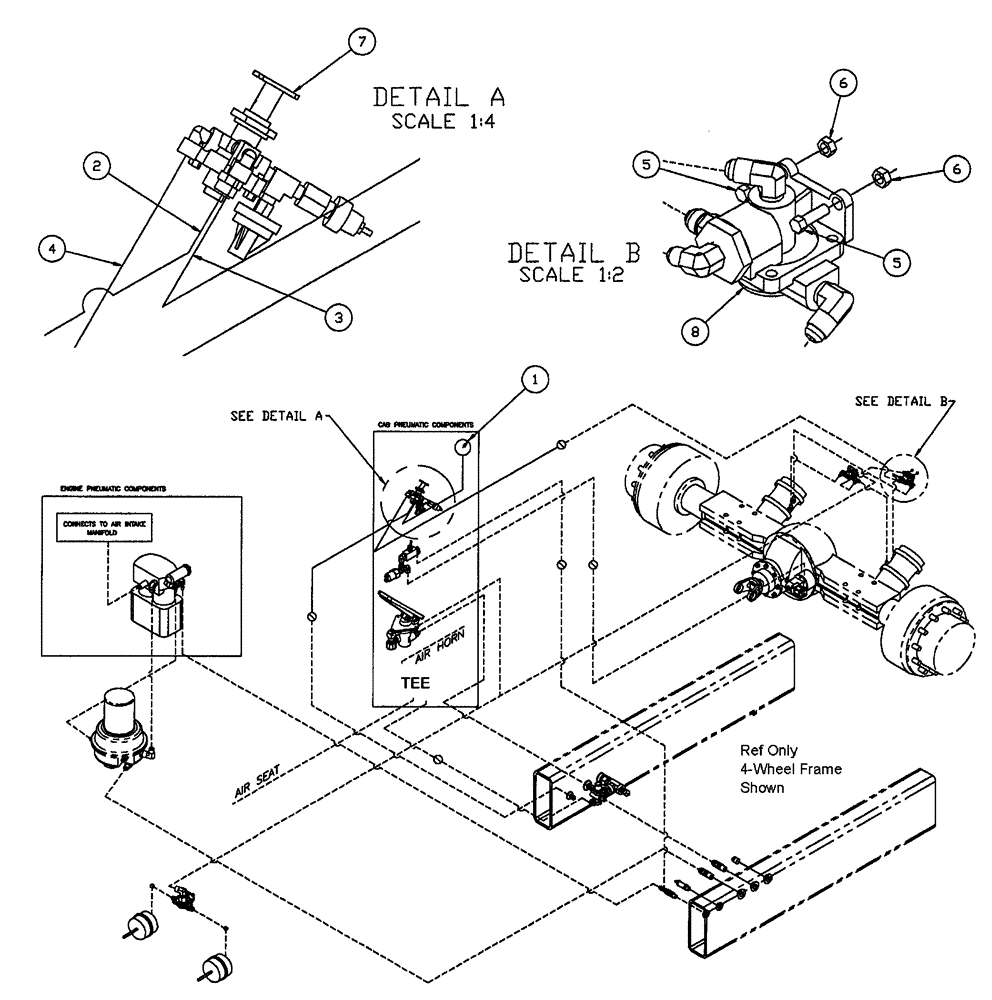

Запчасти Case IH FLX3300B (07-004) - PARKING BRAKE GROUP Pneumatics

1

NSS

NOT SOLD SEPARAT

Kit, Lowair Pressure, See Fig 01-002

1шт.

2

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

5шт.

3

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

6шт.

4

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

6шт.

5

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

6

86528579

NUT,M8 x 1.25

2шт.

7

BN306846

Parking Brake Valve Group, See Fig 07-006

1шт.

8

NSS

NOT SOLD SEPARAT

Quick Release, Park Brake, See Fig 07-007

1шт.

9

BN325629

Group., Park Brake

1шт.
