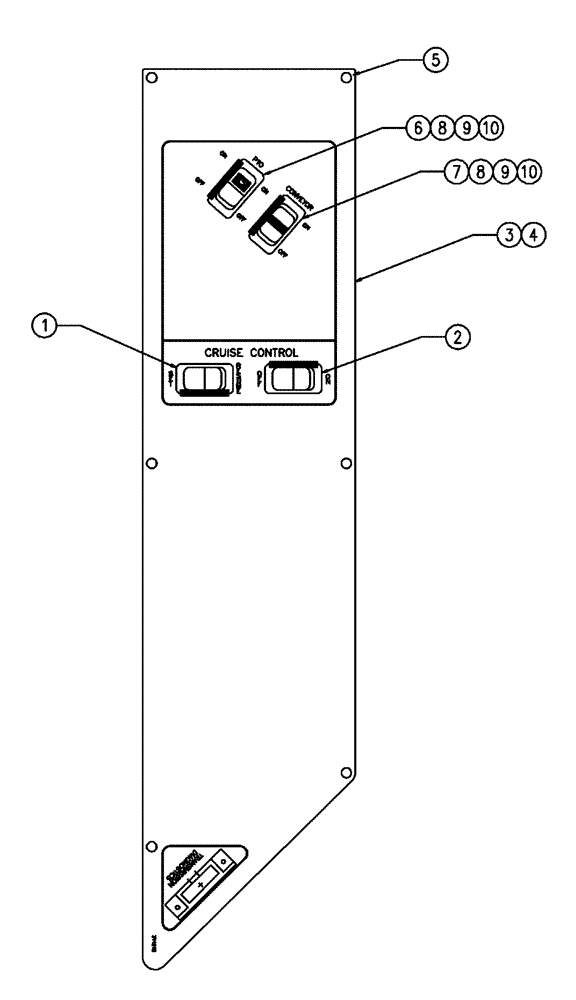

Запчасти Case IH FLX3300B (10-016) - CONSOLE, RH, N-LEADER Options

1

BN310461

SWITCH

Dependent, (On)-Off-(On)

1шт.

2

BN310463

SWITCH

Dependent, On-None-On

1шт.

3

86986007

PANEL

RH Console

1шт.

4

86986006

DECAL

RH Console

1шт.

5

BN311112

RIVET

1/4"-20 x .75, BHCS

6шт.

6

BN310458

SWITCH

SPST, On-None-Off

1шт.

7

BN310459

SWITCH

Dependent, (On)-Off-On

1шт.

8

BN310610

ELEC CONNECTOR,Female, 10 Pin

Eaton Switch

2шт.

9

182137A1

CONNECTOR, ELEC

CONNECTOR Term, 1-2MMA2, Micro Relay

6шт.

10

BN322626

PLUG

Panel, NGR

2шт.
