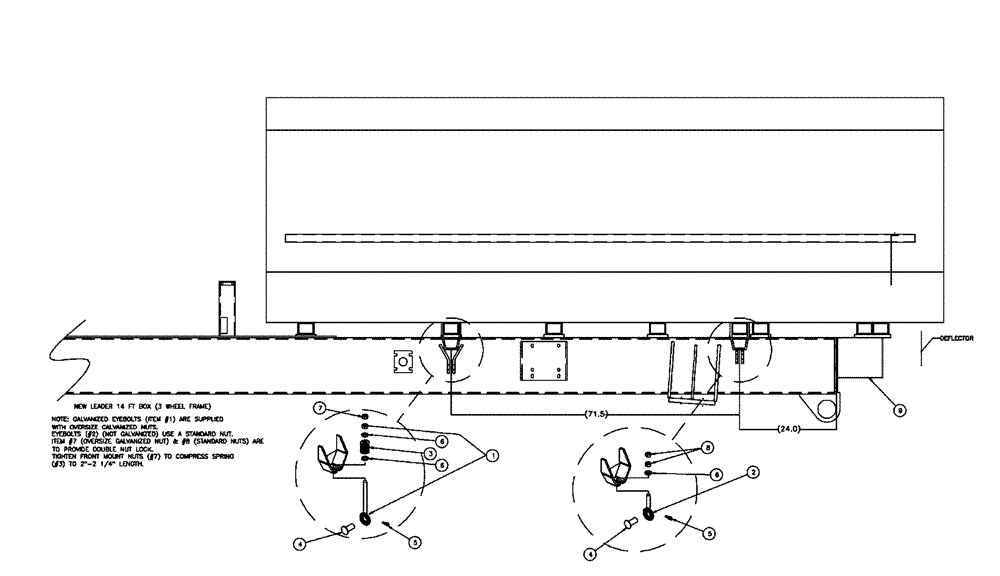

Запчасти Case IH FLX3300B (10-013) - BED MOUNT HARDWARE, N-LEADER, 14 Options

1

BN21533

EYEBOLT

BOLT, EYE 3/4"-10 x 8

2шт.

2

BN2390533

EYEBOLT

3013T69, 3/4 X 3"

2шт.

3

BN2397999

SPRING

2 X 1 ID MHP-85

2шт.

4

86986947

PIN,28.7mm OD x 76.45mm L

1.125 Dia. x 2.625

4шт.

5

BN2297612

PIN

Clip 3/16" Dia x 3 3/4"

4шт.

6

86632591

WASHER,0.81" ID x 1.5" OD x 0.13" Thk

6шт.

7

98066

NUT 3/4"-10, G5

2шт.

8

280375

NUT,3/4"-10, GC

4шт.

9

BN8171001

FRAME

Weldment, Extention 12"

1шт.
