(10-008) - RIGHT HAND DASH PANEL - FOAM MARKER ONLY

Запчасти Case IH FLX3300B (10-008) - RIGHT HAND DASH PANEL - FOAM MARKER ONLY Options

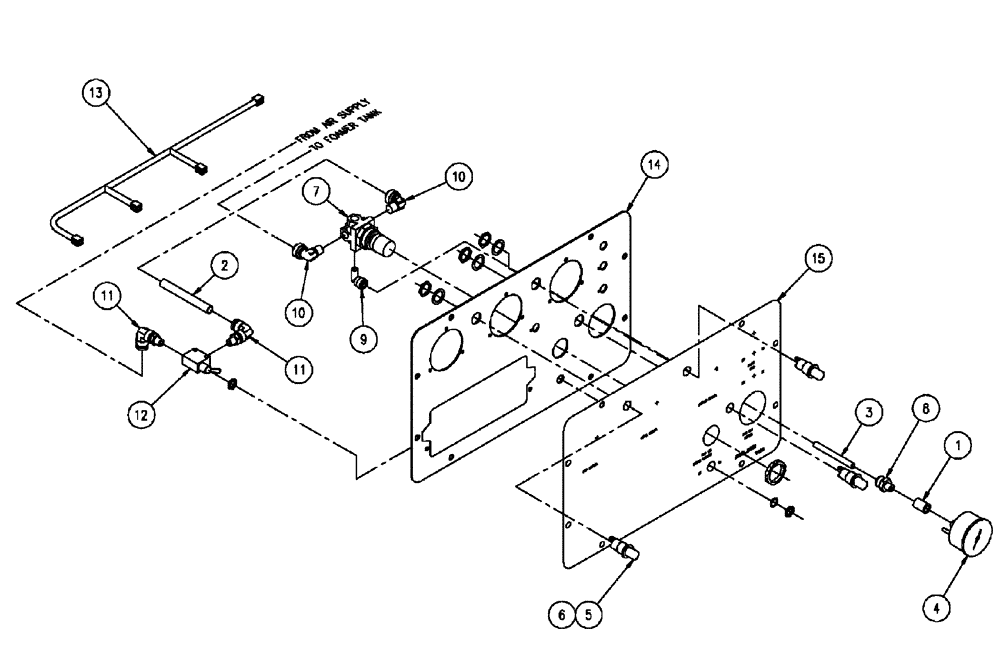

Схема запчастей Case IH FLX3300B - (10-008) - RIGHT HAND DASH PANEL - FOAM MARKER ONLY Options
6
7
11
11
3
14
8
1
9
13
4
2
10
10
5
12
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN0338422

COUPLING

1/8" Standard

1шт.

2

BN2292088

AIR INTAKE TUBE

3/8" Black

1шт.

3

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

4

BN2296768

GAUGE

Air Pressure 0-60

1шт.

5

BN2297225

LIGHT

39F3462

3шт.

6

BN2390267

BULB

ML1815T-3 1/4"

3шт.

7

87388151

REGULATOR

Air Pressure

1шт.

8

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

9

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

10

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

11

BN2399413

HYD CONNECTOR

Tube ME380180

2шт.

12

BN325670

HYDRAULIC VALVE

2-Way Air

1шт.

13

BN305131

WIRE HARNESS

RH Dash Lights

1шт.

14

BN310698

PANEL

RH Dash

1шт.

15

BN310700

DECAL

RH Dash, Titan Liquid

1шт.
