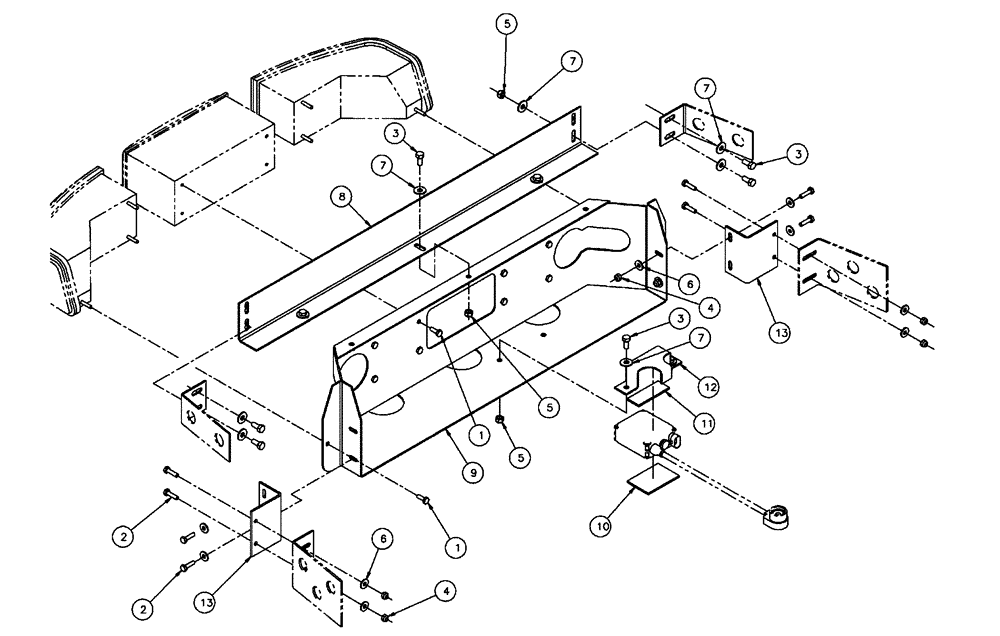

Запчасти Case IH FLX3300B (04-017) - LIGHTS ASSEMBLY Frame & Suspension

1

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

10шт.

2

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

4

353308

NUT,M6 x 1.0, Cl 8

8шт.

5

86528579

NUT,M8 x 1.25

9шт.

6

BN300488

WASHER

M6, Flat, 8.8

12шт.

7

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

13шт.

8

BN317160

BRACKET

Headlight

1шт.

9

BN317161

MOUNTING PLATE

Weldment, Headlight

1шт.

10

333643A1

GASKET

foam HID ballast

1шт.

11

333644A1

GASKET

foam HID ballast hold down

1шт.

12

333645A1

CLAMP

HID ballast hold down

1шт.

13

BN315949

MOUNTING PLATE

Light Assembly To Hood

2шт.
