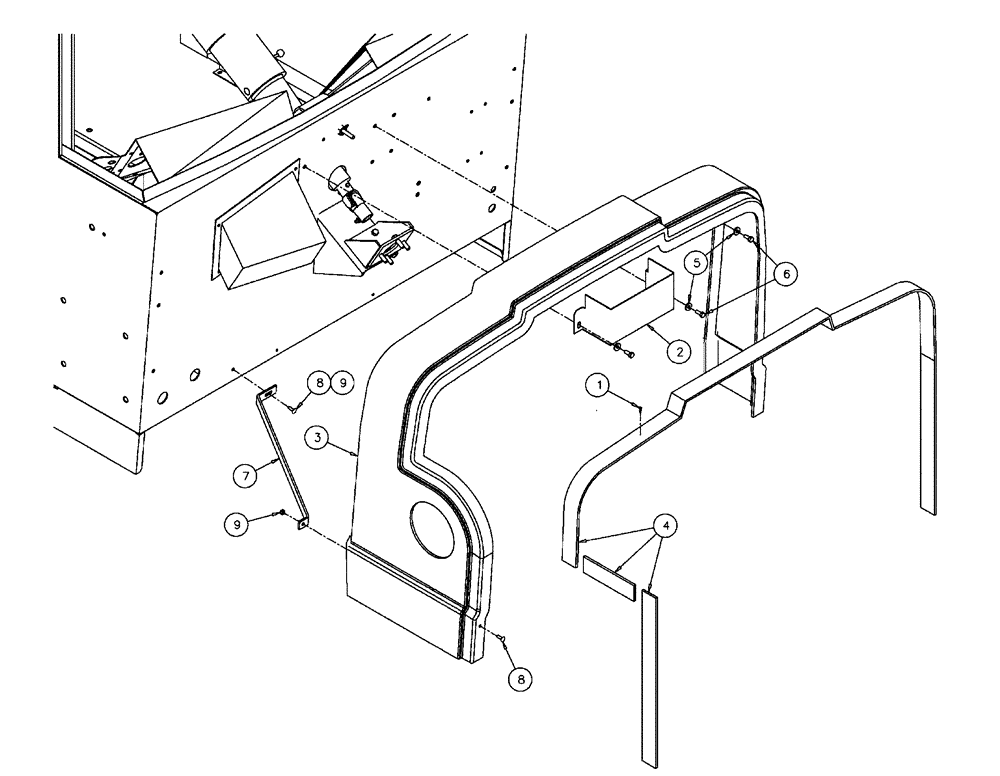

Запчасти Case IH FLX3300B (04-016) - COWLING GROUP Frame & Suspension

1

BN303821

RIVET

.18 x .57 Steel

28шт.

2

BN306490

BOX

Wiper Shield

1шт.

3

BN317994

COWLING

Red, For Skirts

1шт.

4

BN313860

BELT,1.25" W x

Cotton, Red

1шт.

5

BN50141

WASHER

5/16, FW, G5

7шт.

6

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

7

BN324847

SUPPORT

Cowl

1шт.

8

BN50207

BOLT

1/4-20 X .75, TH, SS

2шт.

9

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.
