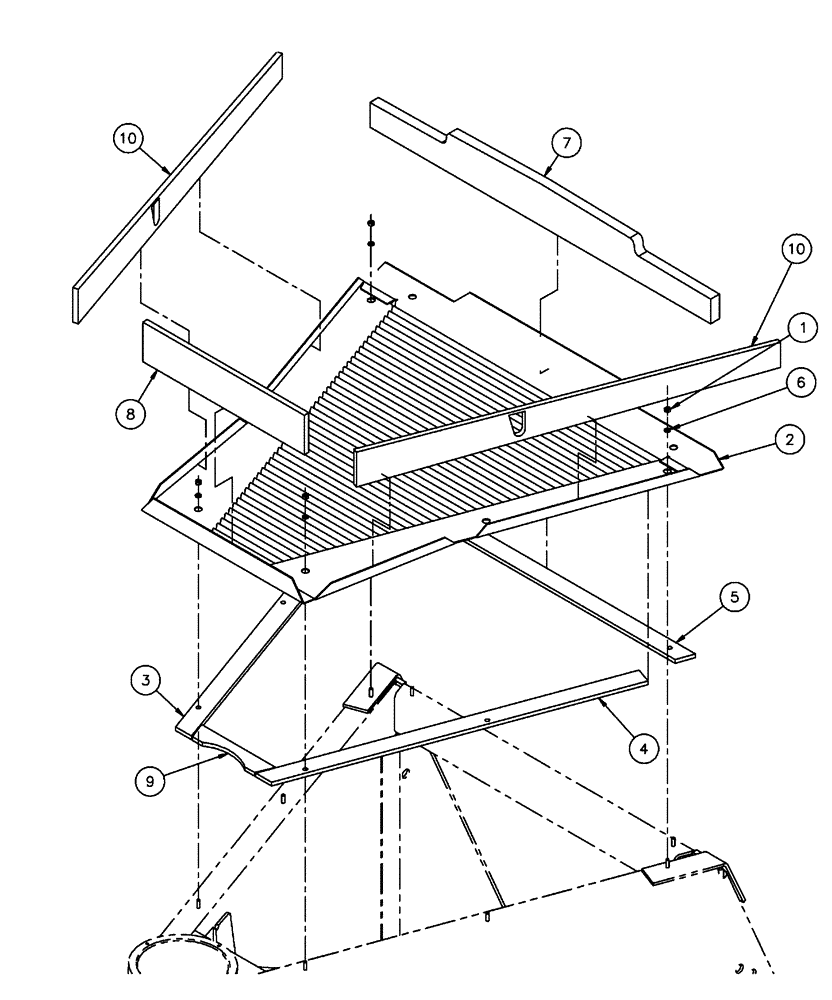

Запчасти Case IH FLX3300B (04-015) - RADIATOR SCREEN ASSEMBLY-TOP Frame & Suspension

1

BN2294431

SET SCREW,1/4" - 20

1/4-20, FLN, SS

8шт.

2

BN324649

Screen, Top

1шт.

3

BN314416

Foam, Top Screen, R.H.

1шт.

4

BN314417

Foam, Top Screen, L.H.

1шт.

5

BN314418

Foam, Top Screen, Rear

1шт.

6

BN50138

WASHER,1/4", SS

8шт.

7

BN324855

FOAM INSULATION

Seal, Rear

1шт.

8

BN324856

FOAM INSULATION

Seal, Front

1шт.

9

BN324645

FOAM INSULATION

Seal

1шт.

10

BN324857

FOAM INSULATION

Seal, Side

2шт.
