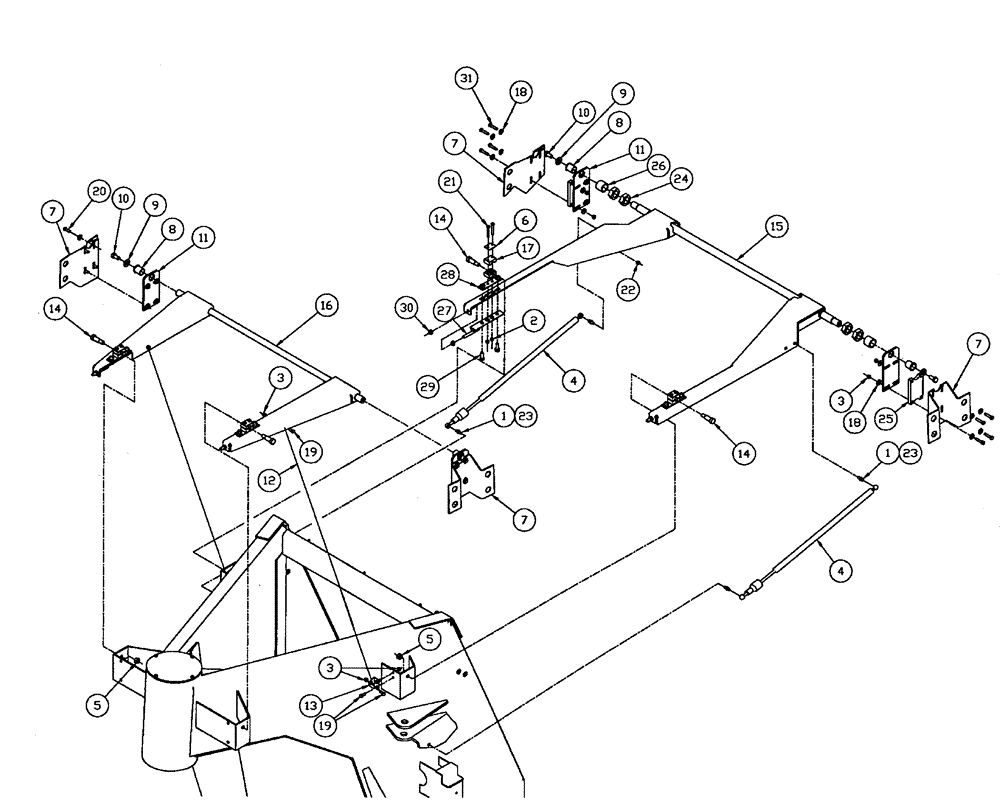

Запчасти Case IH FLX3300B (04-014) - HOOD MOUNTING Frame & Suspension

1

142597A1

STUD

Ball

4шт.

2

353308

NUT,M6 x 1.0, Cl 8

8шт.

3

86528579

NUT,M8 x 1.25

24шт.

4

1968168C3

GAS STRUT

hood lift

2шт.

5

100038

NUT,M12 x 1.75, Cl 8

4шт.

6

BN309485

PLATE

Top, Single, Size 2

4шт.

7

BN314675

HOOD ASSY.

3 Wheel, Complete

1шт.

8

BN63711

FLANGED BEARING,25.4mm ID x 28.57mm OD x 31.75mm L

Flange, 1"

4шт.

9

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

10

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

4шт.

11

BN316679

PLATE

Hood Pivot

4шт.

12

BN315099

CABLE

Assembly, 3/16 X 31

2шт.

13

BN315102

LINKAGE

Hook, Hood

2шт.

14

BN315142

SCREW,Shldr, M12 x 1.75 x 53.40mm

Shoulder, M12-1.75

4шт.

15

BN320194

HOOD

Weldment, Rear Pivot, Hood

1шт.

16

BN320193

PIVOT

Weldment, Front Pivot, Hood

1шт.

17

BN315164

CLAMP

Pair, Single, 5/8 Tube

4шт.

18

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

32шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

20

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

21

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

8шт.

23

9849996

CLIP

Retainer Ball Stud

4шт.

24

BN320210

JAM NUT

1 1/8"-12, Jam

4шт.

25

BN320207

SPACER

Hood Adjust, Offset

2шт.

26

BN320209

COLLAR

Hood Adjust

2шт.

27

BN320205

ADJUSTER

Weldment, Hood

4шт.

28

BN320270

PIVOT

Weldment, Hood Mount

4шт.

29

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

30

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

31

86639209

BOLT,M8 x 1.25 x 40.45mm, Cl 10.9

8шт.
