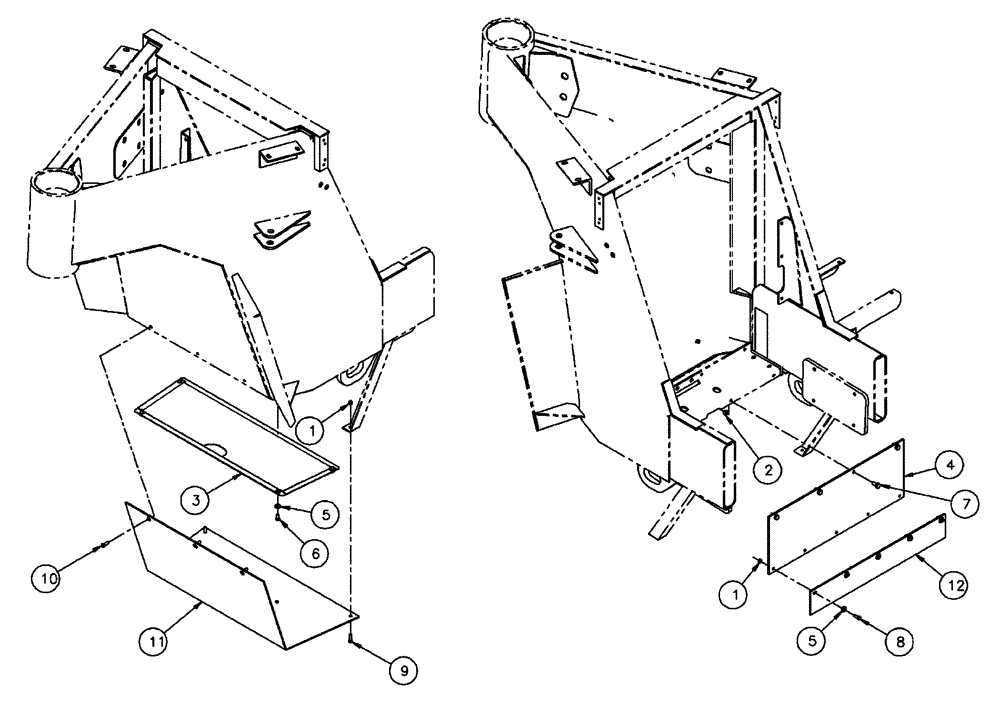

Запчасти Case IH FLX3300B (04-013) - LOWER BAFFLE COMPONENTS Frame & Suspension

1

BN305104

FLANGE NUT

3/8-16, FLN, G8

7шт.

2

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

4шт.

3

87265944

COVER

Screen, Rework, BTM RAD.

1шт.

4

BN313958

BAFFLE

Lower Radiator

1шт.

5

BN50145

WASHER

3/8, FW, G5

9шт.

6

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

7

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

9

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

10

BN55378

BOLT

3/8-16 X 1.0, SK, FH

3шт.

11

BN7131550

PLATE

Pump Guard

1шт.

12

BN7136434

COWLING

Rubber, 3 Wheel Lower

1шт.
