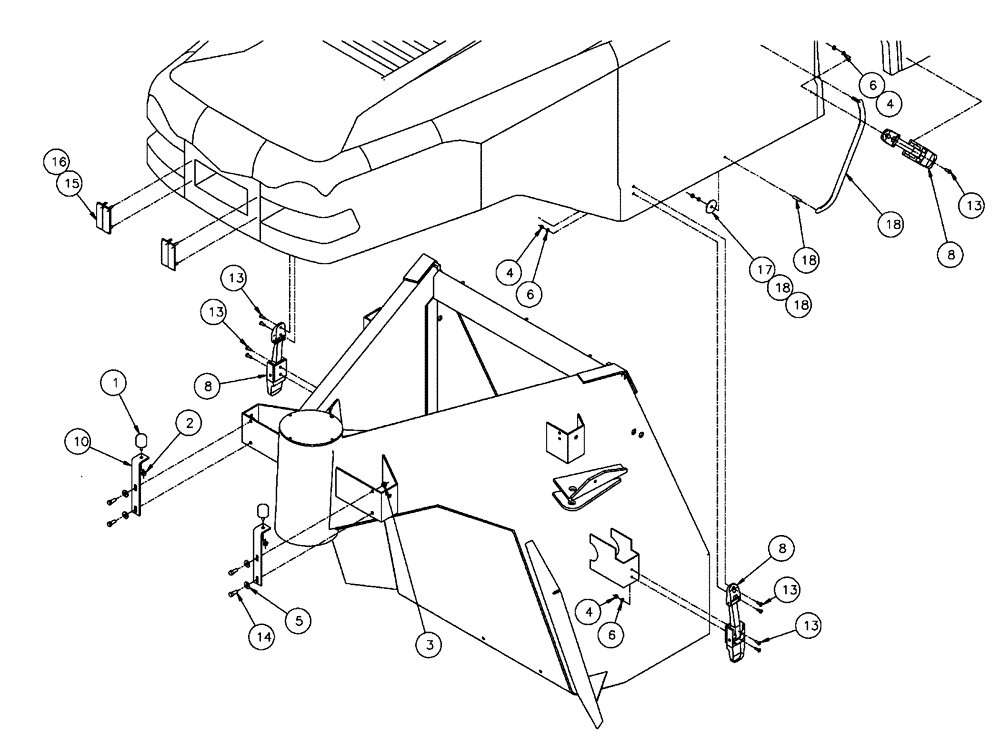

Запчасти Case IH FLX3300B (04-011) - HOOD PARTS GROUP Frame & Suspension

1

BN25232

BUMPER

1.56" Dia - Urethane

2шт.

2

BN315825

LOCK NUT

3/8-16, NLN, G8

2шт.

3

86528579

NUT,M8 x 1.25

4шт.

4

BN300454

NUT

M6-1, FLN, SS

16шт.

5

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

4шт.

6

BN300505

WASHER

M6, FW, SS

16шт.

8

BN310732

LATCH

Hood, 543

4шт.

10

BN315113

MOUNTING PLATE

Hood Bumper

2шт.

13

BN315199

SCREW,M6 x 20mm, SST

M6-1 X 20, BSH, SS

16шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

15

313332A1

LINING

Trim, Nao Headlights Control

4шт.

16

86625060

PUSH-ON NUT,Self, Threading, 1/4"

8шт.

17

BN29930

WASHER

12 ga 409 2" od x .34" id

2шт.

18

BN318538

HANDLE

Grab, 18" SS

1шт.
