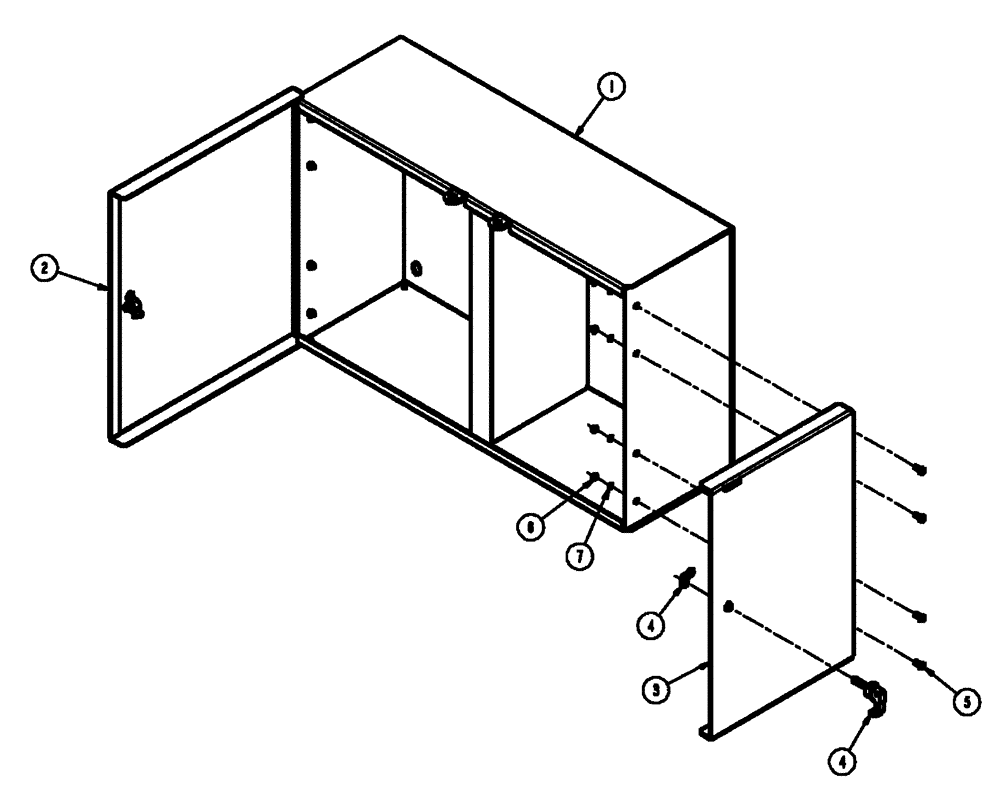

Запчасти Case IH FLX3300B (04-010) - TOOLBOX GROUP Frame & Suspension

1

BN323194

TOOL BOX

Weldment

1шт.

2

BN320702

PANEL

Door Weldment, Toolbox, Front

1шт.

3

BN320704

DOOR PANEL

Weldment, Toolbox, Rear

1шт.

4

BN320718

LATCH

Pawl - Positioning

2шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

6

353308

NUT,M6 x 1.0, Cl 8

8шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.
