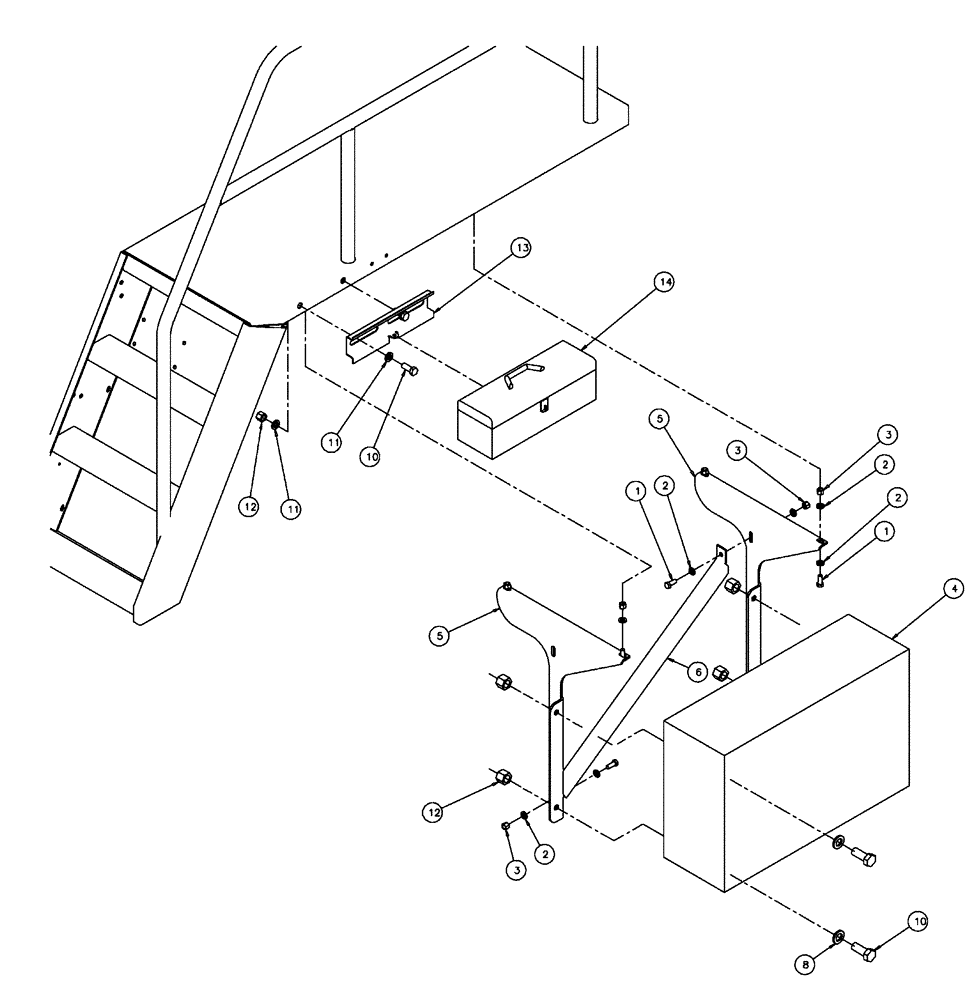

Запчасти Case IH FLX3300B (04-009) - 3-WHEEL STORAGE GROUP Frame & Suspension

1

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

12шт.

3

100038

NUT,M12 x 1.75, Cl 8

6шт.

4

BN323193

Group, Toolbox, See Fig 04-010

1шт.

5

BN323196

BRACKET

3 Wheel Toolbox

2шт.

6

BN321104

SUPPORT

Brace, 3 Wheel Toolbox

1шт.

8

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

4шт.

9

832-46424

NUT,M24 x 3, Cl 8

4шт.

10

86509867

BOLT,Hex Flg, M16 x 40mm

6шт.

11

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

12

832-46416

NUT,M16 x 2, Cl 8

6шт.

13

A181434

SUPPORT

Mount, Toolbox

1шт.

14

A181436

TOOL BOX

Steel

1шт.
