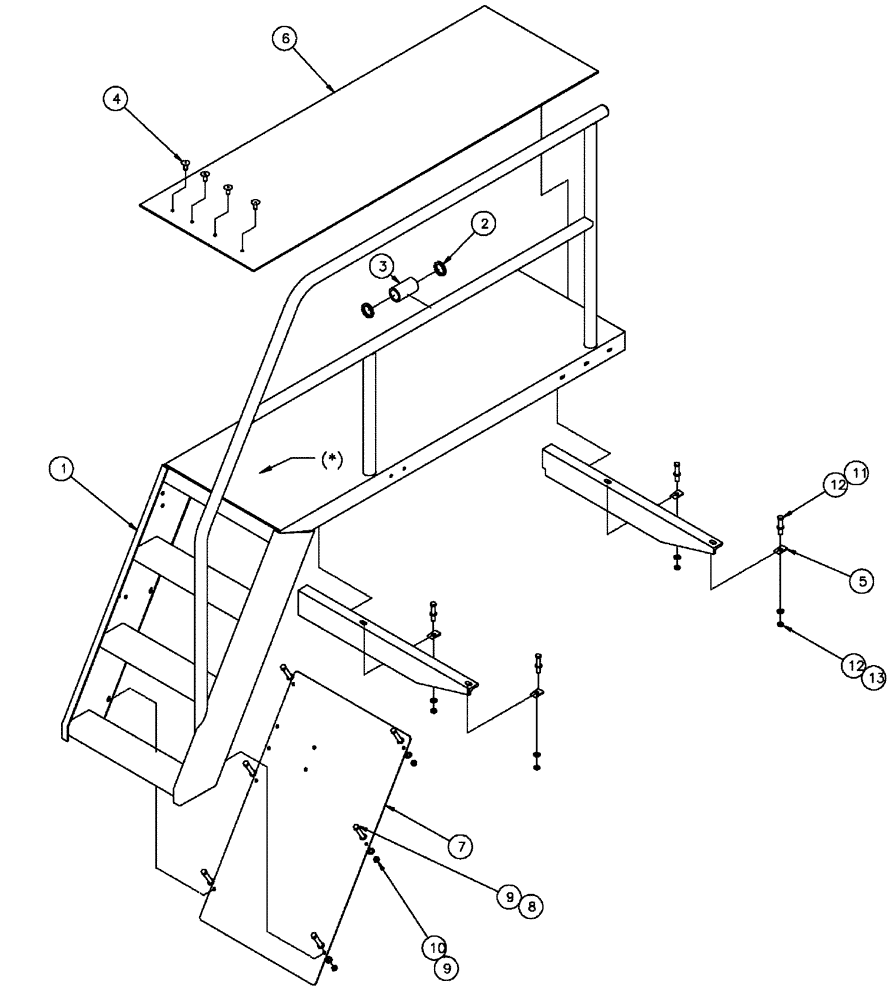

Запчасти Case IH FLX3300B (04-008) - WALKWAY ASSEMBLY Frame & Suspension

1

BN318980

WALKWAY

CATWALK 3 Wheel

1шт.

2

BN9990113

TY RAP, RTH-1400

2шт.

3

BN7141860

HOSE

Door/Window Bumper

1шт.

4

BN2394894

RIVET

Pop 97525A032 3/16X

4шт.

5

BN53802

WASHER

Beveled, 1/2"

4шт.

6

BN2401312

MAT

P-80 GRS/PSA

4шт.

7

BN309915

SHEET

Closure, Ladder 3 Wheel

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

9

BN300497

WASHER,M8, 10.9

12шт.

10

86528579

NUT,M8 x 1.25

6шт.

11

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

12

BN300499

WASHER,M10, 10.9

8шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
