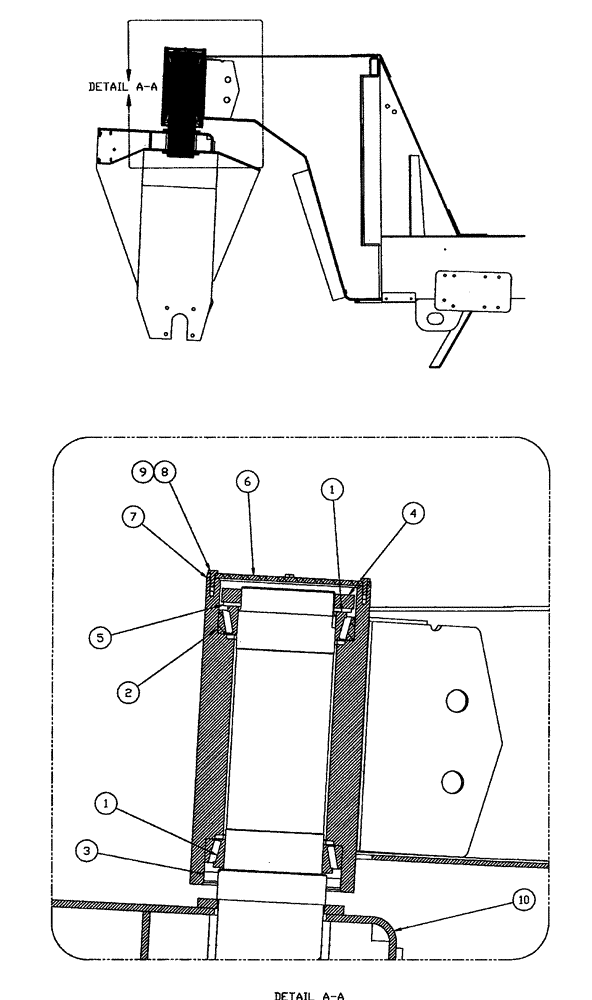

Запчасти Case IH FLX3300B (04-007) - FRAME SUB ASSEMBLY Frame & Suspension

1

BN2390250

ROLLER BEARING

48393

2шт.

2

BN2390251

BEARING CUP

48320 Timken

2шт.

3

BN2392060

SEAL

NATL 417780

1шт.

4

BN2297214

LOCK NUT

AN-26 SKF4

1шт.

5

BN2297215

LOCK WASHER

W-26 SKF

1шт.

6

BN7131029

COVER

Front Fork Spindle

1шт.

7

BN2296717

GASKET

7131039

1шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

9

80682

LOCK WASHER,1/4"

4шт.

10

BN322588

FORK

Weldment, Front

1шт.
