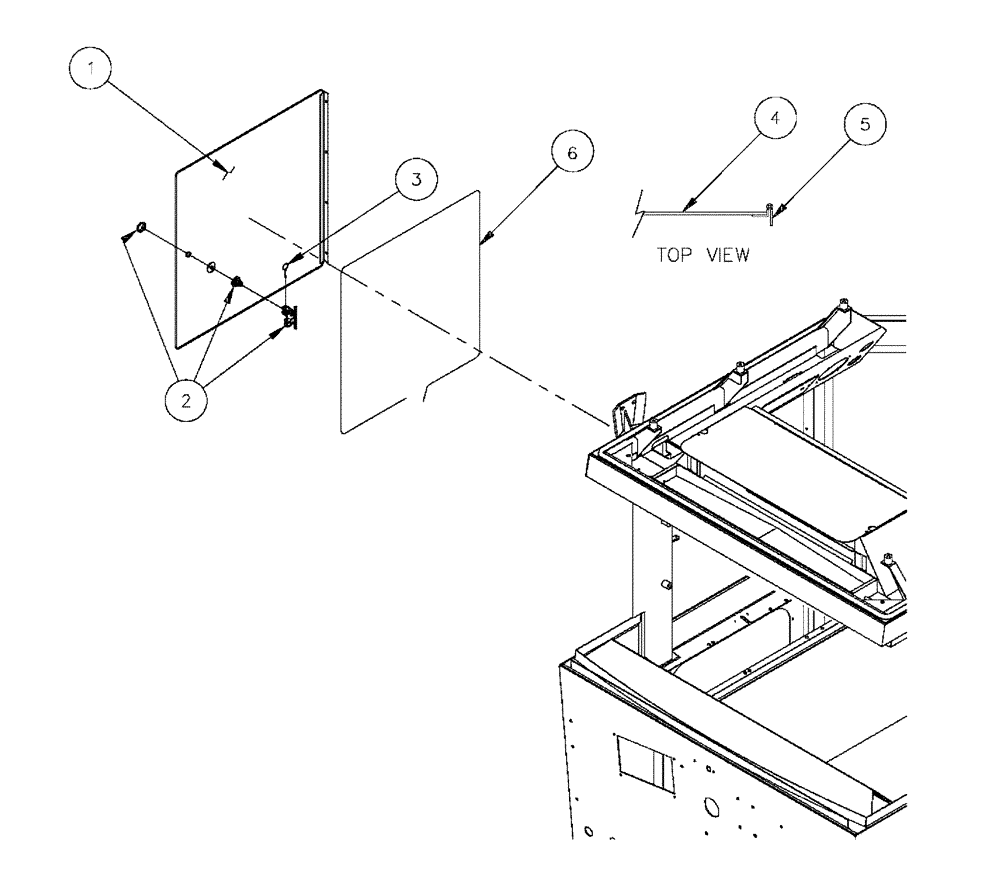

Запчасти Case IH FLX3300B (01-016) - SWING-OUT WINDOW (10) - CAB

1

BN315640

WINDOW

Swing-Out Assembly (Includes Ref. 2 Through 5)

1шт.

2

BN318021

LATCH

Overcenter

1шт.

3a

BN2406306-017

ROLL PIN

3/16 X 1/2

1шт.

3b

BN2406306-018

PIN

Detent, Ring .186 DIA

1шт.

4

BN314487

GLASS

RH Side

1шт.

5

BN314488

HINGE

Window

1шт.

6

BN315637

SEAL

Bulb, Window

1шт.
