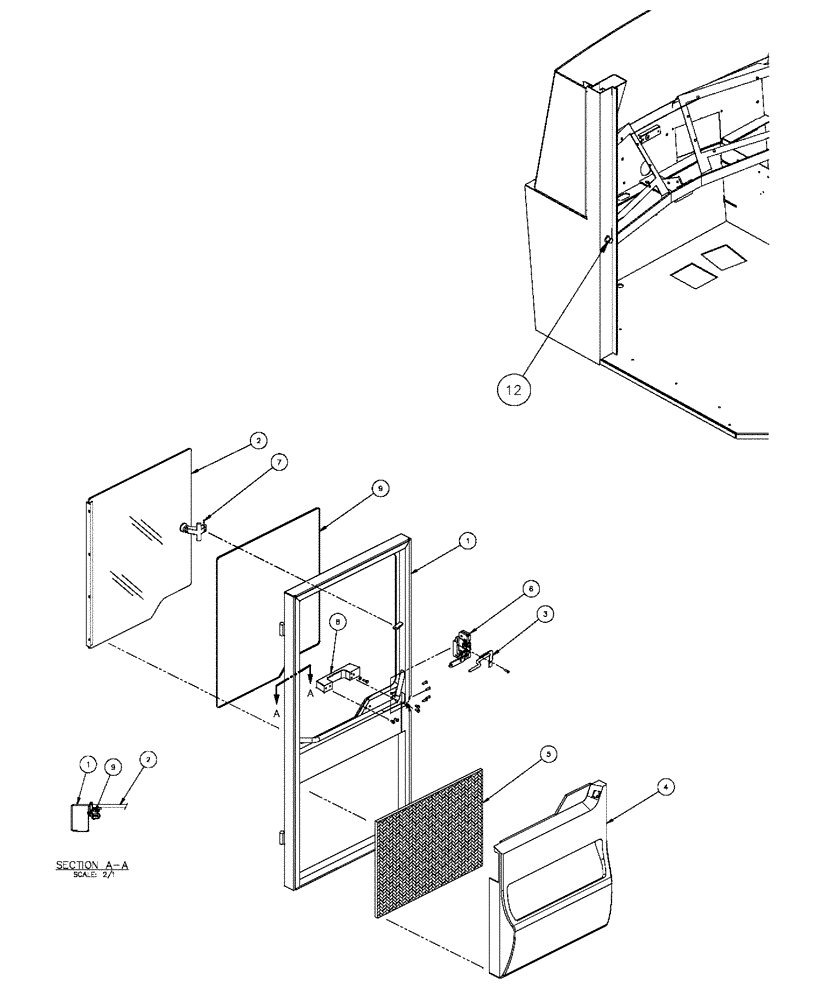

Запчасти Case IH FLX3300B (01-015[02]) - DOOR ASSEMBLY (10) - CAB

0

BN315636

MS Door Assembly '99 Cab Complete (Includes Ref. 2 Through 9)

1шт.

0

BN315907

DOOR

SS Assembly '99 Cab Complete (Includes Ref. 2 Through 9)

1шт.

1

BN315926

DOOR

MS Frame, Door (For Door Assembly 315636)

1шт.

1a

BN315927

SS Frame, Door (For Door Assembly 315907)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

NSS

NOT SOLD SEPARAT

Swing Out Window, See Fig 01-017

1шт.

3

BN313665

EXTENSION

Weldment, Release

1шт.

4

BN314492

COVER

ABS

1шт.

5

BN314491

FOAM INSULATION

1шт.

6

BN313664

LATCH

Cam, Cab, FLX

1шт.

7

BN2406306-017

ROLL PIN

3/16 X 1/2

1шт.

8

BN66106

HANDLE

Outside

1шт.

9

BN315637

SEAL

Bulb, Window Titan

1шт.

10

BN315638

DOOR SEAL

Bulb, Titan Cab

1шт.

11

BN315639

RETAINER

Seal Titan Door

1шт.

12

R51754

STRIKER

Door Striker

1шт.
