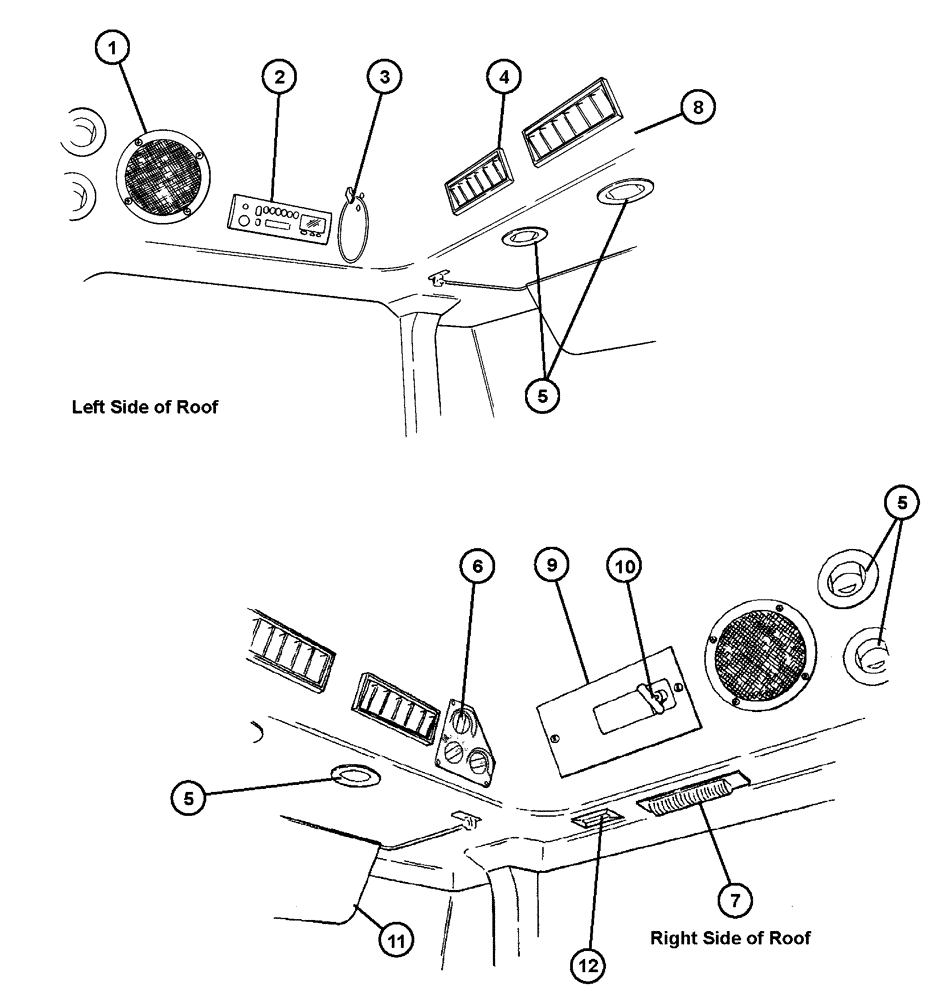

Запчасти Case IH FLX3300B (01-003) - ACCESSORIES (10) - CAB

1

BN2391154-002

RADIO

Speaker

2шт.

2

BN2391154-001

RADIO

Am/Fm/St/Cass (Removable Face)

1шт.

2a

BN311133

BRACKET

Antenna

1шт.

Associated Part Of Radio, Am/Fm/St/Cass, P/N BN2391154-001

1шт.

2b

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

3шт.

Associated Part Of Radio, Am/Fm/St/Cass, P/N BN2391154-001

1шт.

2c

BN2391154-003

ANTENNA

Rubber

1шт.

Associated Part Of Radio, Am/Fm/St/Cass, P/N BN2391154-001

1шт.

2d

BN2391154-004

Extension, Antenna 36"

1шт.

Associated Part Of Radio, Am/Fm/St/Cass, P/N BN2391154-001

1шт.

3

BN300566

SLEEVE

Aluminum

1шт.

3a

BN300567

HOOK

Air Horn Install

1шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

3b

BN2403383

CABLE

Vinyl Coat 1/16

1шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

3c

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

12шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

3d

BN324834

HORN

Fultone, Stainless

1шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

3e

BN7143114

MOUNTING PLATE

Angle, Horn Valve Mount

1шт.

Associated Part Of Sleeve, Aluminum, P/N BN300566

1шт.

4

BN2406306-010

VENT

Louver, RECT

3шт.

5

BN2406306-011

VENT

Louver, Round 2"

7шт.

6

BN320746

REPAIR KIT

Assembly Temperature Control, See Fig 01-006

1шт.

7

BN2406306-020

COURTESY LIGHT

DOME LIGHT

1шт.

8

BN314495

ROOF LINING

Headliner, Covered

1шт.

9

BN7142713

SHEET

Cover Fuse Panel

1шт.

10

BN2403349

CABLE

Twistlock

1шт.

11

BN2407981

SUN GEAR

Visor, Acrylic 8630

1шт.

12

83882C91

LAMP

Assembly, Courtesy

1шт.

12a

BN314494

FLOOR MAT

Cab, (Not Shown)

1шт.

12b

BN2406306-021

Flex, 2 1/2" Heater (Located In Cab Roof), (Not Shown)

1шт.
