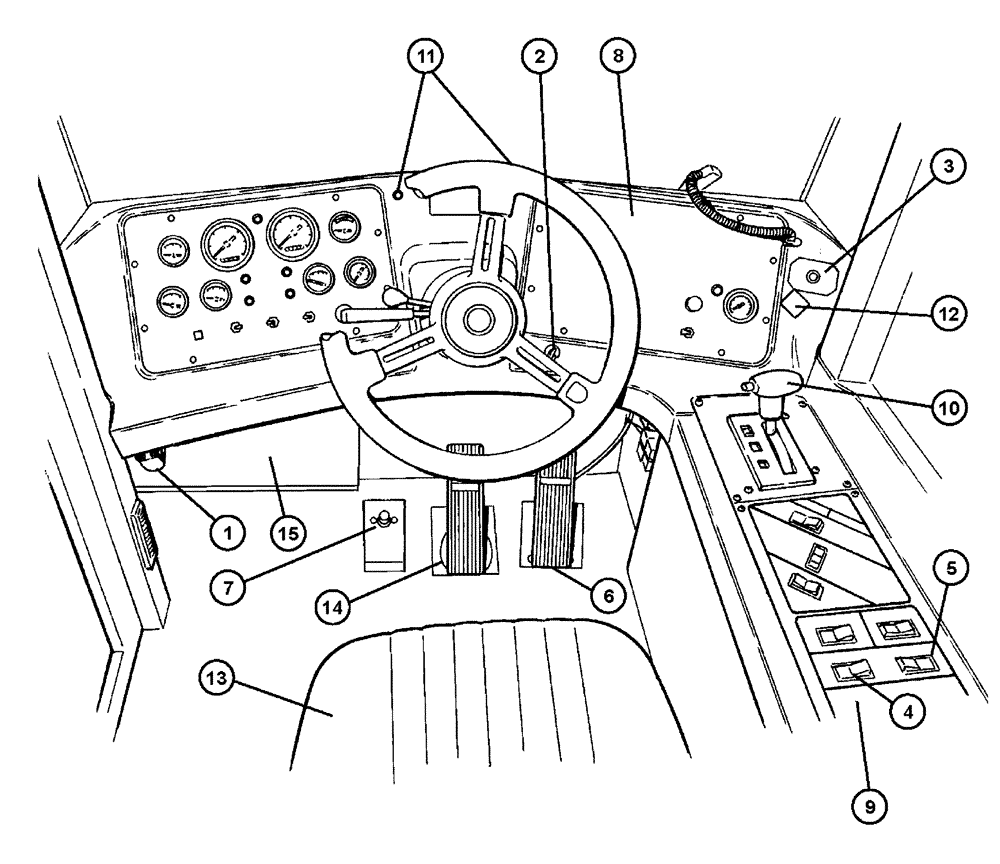

Запчасти Case IH FLX3300B (01-002) - CAB ELECTRICAL GROUP (10) - CAB

1

BN65223

POWER SOCKET

Outlet, 12V

1шт.

1a

BN2404968

SELF-TAP SCREW,#8 x 5/8"

HH #8 X 5/8 Self Tapping

4шт.

Associated Part of Outlet, Auxiliary Power Single, P/N BN2392095

1шт.

2

282775A1

IGNITION SWITCH

With Padded Keys

1шт.

3

BN2291152

REPAIR KIT

Low Air Pressure 326

1шт.

4

BN310461

SWITCH

Dependent(On)-Off-(On)

1шт.

5

BN310463

SWITCH

Dependent, On-None-On

1шт.

6

BN302305

THROTTLE

Pedal - Engine Dependent

1шт.

6a

BN302720

PLATE

ELEC., Throttle Pedal

1шт.

Associated Part of Throttle Pedal - Engine Dependent, P/N BN302305

1шт.

6b

BN300363

BOLT

M6-1 X 20, HH, 8.8

3шт.

Associated Part of Throttle Pedal - Engine Dependent, P/N BN302305

1шт.

6c

BN300428

NUT

M6-1, FLN, 8.8

3шт.

Associated Part of Throttle Pedal - Engine Dependent, P/N BN302305

1шт.

6d

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

Associated Part of Throttle Pedal - Engine Dependent, P/N BN302305

1шт.

6e

BN304315

NUT

M8-1.25, FLN, 10.9

3шт.

Associated Part of Throttle Pedal - Engine Dependent, P/N BN302305

1шт.

7

BN29522

SWITCH

Dimmer Floor Mount

1шт.

7a

BN29618

MOUNTING PLATE

10 ga HRS 3.5 x 10.5

1шт.

Associated Part of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

7b

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

Associated Part of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

7c

BN304315

NUT

M8-1.25, FLN, 10.9

4шт.

Associated Part of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

8

BN311601

DASH PANEL

RH, Chassis

1шт.

9

86986653

CONSOLE

RH, Chassis

1шт.

See Fig. 10-019

1шт.

10

BN312833

Gear Selector Panel Group., MD

1шт.

See Fig. 03-004

1шт.

11

BN2290807

INDICATOR LIGHT

Green

2шт.

11a

BN2291235

LAMP SOCKET

Indicator Light

2шт.

Associated Part of Light, Indicator Green, P/N BN2290807

1шт.

12

BN306846

Parking Brake Valve Assem

1шт.

See Fig. 07-006

1шт.

13

NSS

NOT SOLD SEPARAT

Air Seat Assembly

1шт.

See Fig. 01-005

1шт.

14

NSS

NOT SOLD SEPARAT

Brake Pedal Valve Group

1шт.

See Fig. 07-005

1шт.

15

BN316082

SHIELD

Wiring Cab

1шт.

15a

BN50053

NUT

Hex, 1/4"-20, G5

2шт.

Associated Part of Shield, Wiring Cab, P/N BN316082

1шт.

15b

BN2303140

PLATE

Washer, Flat 1/4

2шт.

Associated Part of Shield, Wiring Cab, P/N BN316082

1шт.
