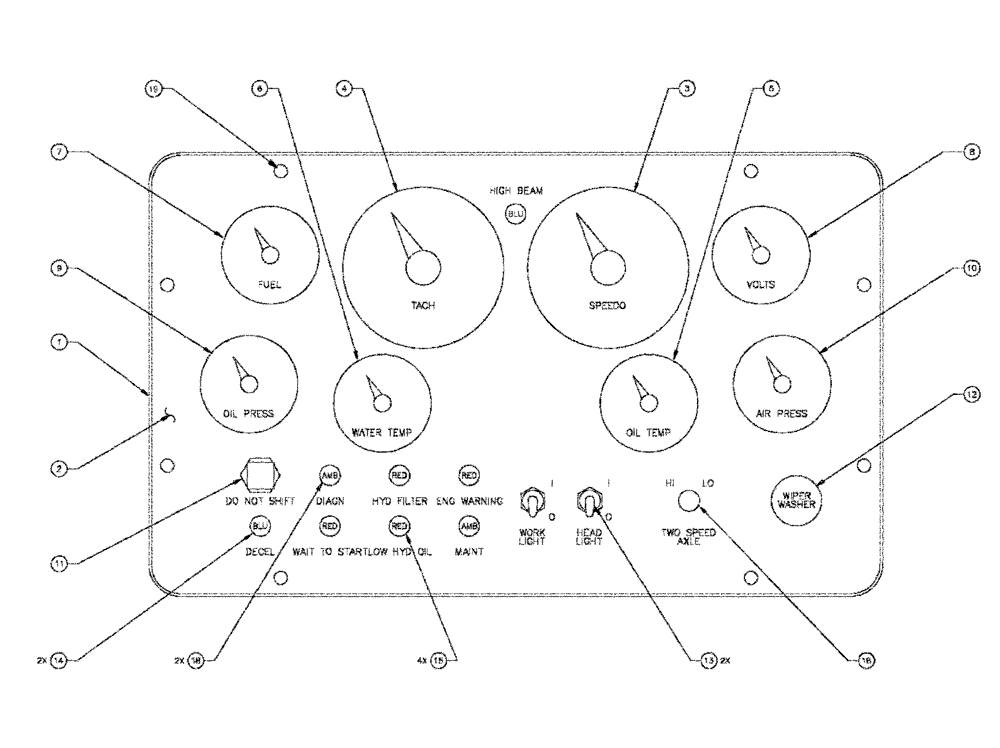

Запчасти Case IH FLX3300B (01-001) - LEFT DASH ASSEMBLY (10) - CAB

1

BN316978

DASH PANEL

Left

1шт.

2

BN314887

DECAL

Left Dash

1шт.

3

BN304524

SPEEDOMETER

3.38 X 80Mph W/OD

1шт.

4

86636599

TACHOMETER

3.38 x 3K With Hourmeter

1шт.

5

BN315188

GAUGE

Assembly, Oil Temp

1шт.

6

BN2296730

GAUGE

Water Temp "Smart"

1шт.

7

BN2296752

FUEL GAUGE

Fuel Level

1шт.

8

BN2296753

GAUGE

Voltmeter 06355-01

1шт.

9

BN2296754

OIL PRESSURE GAUGE

Oil Press "Smart"

1шт.

10

BN2390774

GAUGE

Air Pressure 0-150

1шт.

11

BN2293217

BUZZER

1шт.

12

BN2294958

SWITCH

Windshield Wiper

1шт.

13

BN2291956

SWITCH

Cutler Hammer

2шт.

14

BN2291214

INDICATOR LIGHT

Blue

2шт.

15

BN2291234

INDICATOR LIGHT

Red

4шт.

16

BN2394623

PLUG

Dash 1/2" #2643

1шт.

16a

BN2290525

FITTING

VS68AB-4-2

1шт.

Not Shown

1шт.

18

BN315370

INDICATOR LIGHT

Amber

2шт.

18a

BN314988

WIRE HARNESS

L Dash, Hyd Lite (Under Dash)

1шт.

Not Shown

1шт.

18b

BN314989

WIRE HARNESS

Left Dash, (B2F) (Under Dash)

1шт.

Not Shown

1шт.

18c

BN314991

WIRE HARNESS

Lights, (B1F) (Under Dash)

1шт.

Not Shown

1шт.

18d

BN314992

WIRE HARNESS

Wiper, (B8F) (Under Dash)

1шт.

Not Shown

1шт.

18e

BN314993

WIRE HARNESS

Left Dash, Gnd (Under Dash)

1шт.

Not Shown

1шт.

18f

BN314994

WIRE HARNESS

Left Dash, Lights (Under Dash)

1шт.

Not Shown

1шт.

18g

BN314995

WIRE HARNESS

Left Dash, W Lights (Under Dash)

1шт.

Not Shown

1шт.

18h

BN315207

WIRE HARNESS

Left Dash, Maint. (Under Dash)

1шт.

Not Shown

1шт.

19

161-115

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"

8шт.
