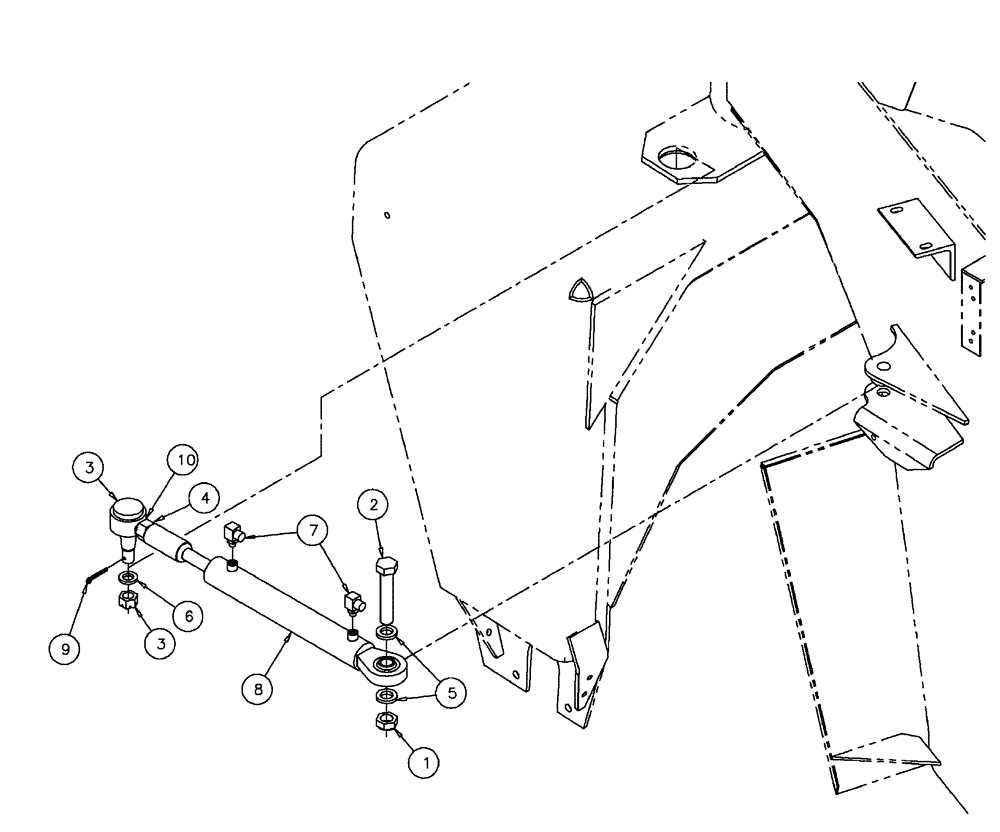

Запчасти Case IH FLX3300B (06-006) - STEERING CYLINDER ASSEMBLY (07) - HYDRAULICS

1

232-46416

NUT

1-12, TLN, CL8

1шт.

2

428-1680

BOLT,Hex, 1" - 14 x 5", Gr 8

1-12 X 5, HH, G8

1шт.

3

BN2290206

STUD

Ball, End L24-Sv

1шт.

4

BN320210

JAM NUT

1 1/8"-12, Jam

1шт.

5

BN2298333

WASHER

Hardened 1 WA1772

2шт.

6

BN319879

WASHER

7/8, FW, Grade 5

1шт.

7

BN302557

FITTING

8Mor-6Mbx90

2шт.

8

344002A1

CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke

hydraulic, 2.00 x 12 x 1.00

1шт.

See Fig. 06-009

1шт.

9

BN1630444

COTTER PIN

1/8 X 1 1/2

1шт.
