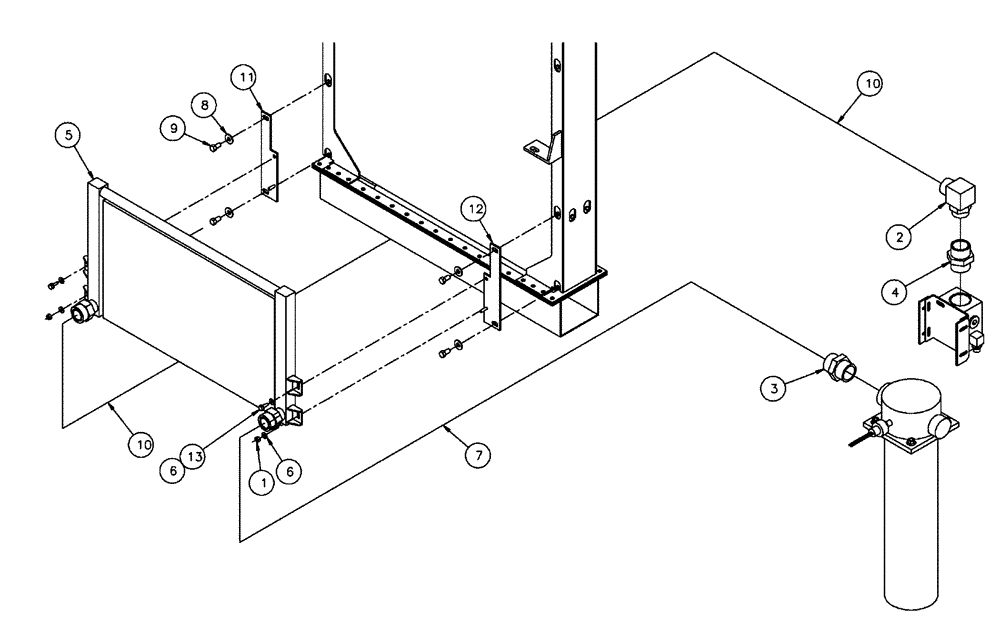

Запчасти Case IH FLX3300B (06-003) - HYDRAULIC COOLER GROUP (07) - HYDRAULICS

1

280129

NUT,1/4"-20

2шт.

1

276-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

1шт.

2

BN302577

ELBOW

20Mor-20Mbx90

1шт.

3

BN305058

FITTING

20Mor-24Mb

1шт.

4

BN305539

FITTING

20Fb-24Mb

1шт.

5

BN315654

OIL COOLER

Hydraulic

1шт.

6

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

4шт.

7

BN315681

HOSE

Assembly, - 20 X 150"

1шт.

8

BN50145

WASHER

3/8, Fw, G5

4шт.

9

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

10

BN315699

HOSE

Assembly, -20 X 138"

1шт.

11

BN316728

PLATE

Weldment, HYD CLR Mount, CS

1шт.

12

BN316727

PLATE

Weldment, HYD CLR Mount, RS

1шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.
