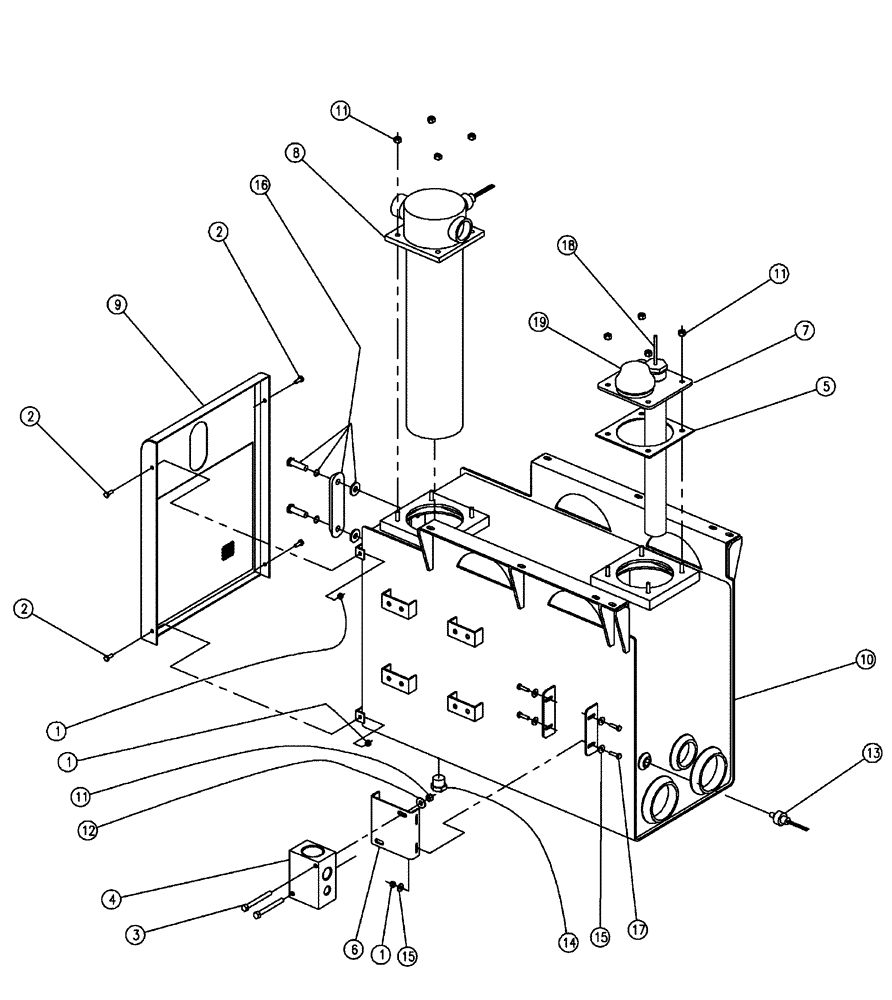

Запчасти Case IH FLX3300B (06-002) - HYDRAULIC TANK ASSEMBLY (07) - HYDRAULICS

1

353308

NUT,M6 x 1.0, Cl 8

8шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

3

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

4

BN302877

MANIFOLD

Oil Return

1шт.

5

BN302982

GASKET,3.17mm Thk

Cover Plate

1шт.

6

BN306337

BRACKET

Oil Manifold

1шт.

7

BN324120

PLATE

Weldment, Temperature/Level

1шт.

8

BN307779

Assembly, Tank Filter, 6ABS, See Fig -06-010

1шт.

9

BN303906

SHIELD

Heat, W/M,Titan

1шт.

10

BN324701

TANK

HYD Oil, Weldment

1шт.

11

86528579

NUT,M8 x 1.25

10шт.

13

BN305020

SENDER UNIT

Tempeature, 3/8 NPT

1шт.

14

9841223

PLUG,1-1/16" - 12 ORB

1шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

16

BN322594

GAUGE

Sight W/Temperature

1шт.

17

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

18

BN324116

INDICATOR

Sensor, Multiple Oil Level And Oil Temperature

1шт.

19

BN304339

VALVE

Press Valve

1шт.
